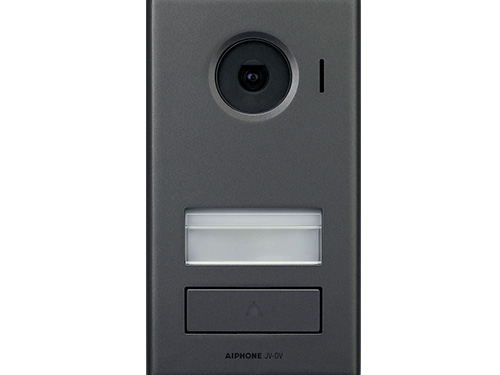

JV-DV Video Door Station

Vandal-Resistant Door Station

The JV-DV is included with the JVS-1V box set, and is not sold separately.

This video door station provides hands-free communication, features a fixed camera, LED illumination automatically initiates in low light conditions. Made of die-cast aluminum, this unit is weather and vandal resistant. The JV-DV is designed for surface mount and attaches directly to the wall.

System Highlights

JV Series Operation Guide

JV-DV Specifications

JV Series Home Page

Features

Video camera with audio intercom
Two-way, hands-free voice communication with master and expansion stations
Vandal-resistant, die-cast aluminum
Surface mounted
Call button with lit bell icon
White LED illuminated for low-light conditions
Included in JVS-1V kit, not sold separately

Specs

Power Source:	Power Source: Supplied by Master Station or Expansion Station
Communication	Communication Hands-free
Camera	Camera Type: 1/4" CMOS View Area: 2'1" vertical x 3'1" horizontal at 20"
Door Release	Door Release Door Station Output: N/0 dry contact, 24V AC/DC, 1A Second Door Station Output: N/O wet contact, 500 mA or less, 12V DC Door Station Input: request to exit, N/O dry contact
Temperature Rating	Temperature Rating -4°~140°F (-20°C~60°C)
Material	Material Die Cast Aluminum
Wire Type	Wire Type Door Station to Master Station or Expansion Station: 2-cond., low cap, non-shielded - use Aiphone #871802
Distance	Distance Door Station to Master Station or Expansion Station: 330' (18-AWG)
Dimensions	Dimensions 6-11/16" H x 3-3/16" W x 15/16" D
