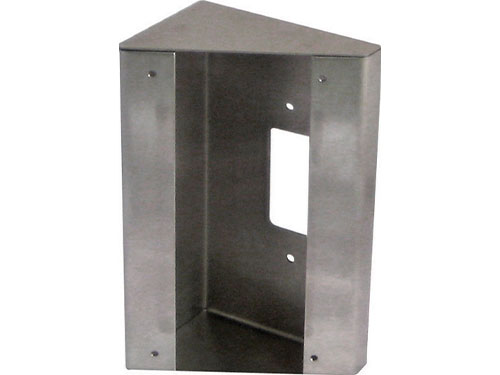

SBX-DV30

thumb
30-Degree Angle Box

The SBX-DV30 is an 18-Gauge stainless steel surface mount 30° box designed for angle mounting the JF-DV, JK-DV, JO-DV, JP-DV, and JV-DV video door stations. This is applicable for wide or double door entrances where the door station needs to be mounted off to the side of the door, and provides a better viewing angle for the camera.


Features
  • Weather resistant
  • Vandal-resistant
  • Inside space for cabling
  • Mounts to flat wall surface
  • Opening at bottom for drainage

Specs
Included Hardware 8x32 with T-15 Torx head
Dimensions 6-13/16" H x 3-5/8" W x 2-7/8" D
