JVS-1F Box Set

thumb

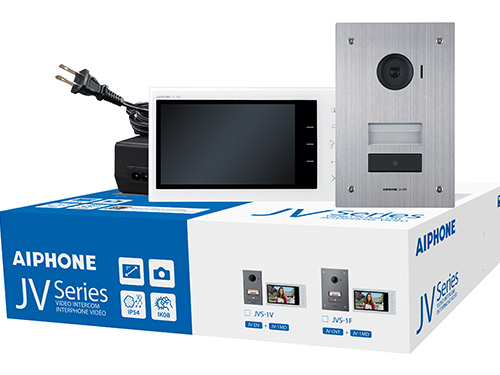

The JVS-1F box set includes the JV-DVF, JV-1MD (not sold separately), and a PS-2420UL power supply.

The JVS-1F is a convenient system that comes complete with master station, door station, and power supply. Add the optional JV-1FD, a video expansion master station, to create a 1x2 system.


Features

JV-DVF Door Station

  • Fixed camera provides clear video
  • Weather and vandal resistant
  • Durable stainless steel
  • Flush mount with back box (included), or surface mount with SBX-DVF
  • LED illumination automatically turns on in low light conditions
  • Backlit call button and nameplate

JV-1MD Video Master Station

  • Video identification and monitoring
  • Slim design
  • Hands-free communication or push-to-talk

Specs
Power Source 24V DC—use PS-2420UL
Communication Hands-Free (VOX) or push-to-talk (simplex)
Door Release Master/Expansion Station and Door Station Output: N/O dry contact
Second Door Station Output: N/O wet contact, 500 mA or less, 12V DC
Door Station Input: request to exit, N/O dry contact
Wire Type Door Station to Master Station: 2-Cond., mid cap, solid, non-shielded — use Aiphone #871802
Door Station to Expansion Station: 2-cond., mid cap, solid, non-shielded—use Aiphone #871802
Expansion Station to Master Station (without door release): 4-cond., mid cap, solid, non-shielded—use Aiphone #871804 OR 2 runs of Aiphone #871802
Expansion Station to Master Station (with door release): 6-cond., mid cap, solid, non-shielded — use #871802 + #871804 OR 3 runs of Aiphone #871802
Distance Door Station to Master Station: 165' (22AWG) 330' (18 AWG)
Door Station to Expansion Station: : 165' (22AWG) 330' (18 AWG)
Expansion Station to Master Station: : 165' (22AWG) 330' (18 AWG)
Power Supply to Master Station: 16' (22AWG) 33' (18 AWG)
