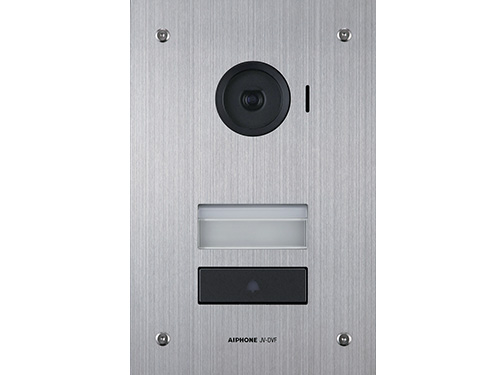

JV-DVF Video Door Station

thumb

The JV-DVF is included with the JVS-1F box set, and is not sold separately.

This video door station provides hands-free communication, features a fixed camera, LED illumination automatically initiates in low light conditions. Made of stainless steel, this unit is weather and vandal resistant. The JV-DVF is designed for flush mount and can be surface mounted using the SBX-DVF.


Features
  • Fixed camera providesa clear video
  • Weather and vandal resistant
  • LED illumination automatically turns on in low light conditions
  • Backlit call button
  • LED backlit nameplate

Specs
Power Source: Supplied by Master Station or Expansion Station
Communication Hands-free
Camera Type: 1/4" CMOS
View Area: 2'1" vertical x 3'1" horizontal at 20"
Door Release Door Station Output: N/0 dry contact, 24V AC/DC, 1A
Second Door Station Output: N/O wet contact, 500 mA or less, 12V DC
Door Station Input: request to exit, N/O dry contact
Temperature Rating -4°~140°F (-20°C~60°C)
Material Zinc die cast
Mounting Flush mount with included back box or surface mount with SBX-DVF
Wire Type Door Station to Master Station or Expansion Station: 2-cond., low cap, non-shielded - use Aiphone #871802
Distance Door Station to Master Station or Expansion Station: 330' (18-AWG)
Dimensions 8-1/4" H x 5-5/16" W x 5-5/16" D
