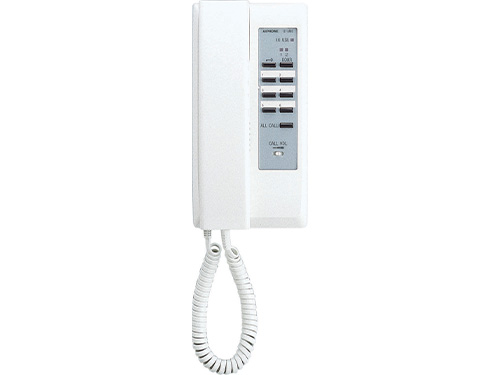

IE-8MD

thumb

Selective Call Main Handset for 2 Doors, Up To 6 Rooms


Features
  • Selective Call or All Call between handsets
  • Simple 4 conductor wiring between handsets
  • Two doors with selective door release
  • External doorbell can be added
  • AC or DC powered (12~16V AC or 12~18V DC)

Specs
Communication Handset (full-duplex)
Door Release N/O dry contact, 24V AC/ DC, 350mA
Wire Type Door Station to Master Station: 2-cond., overall shield - use Aiphone #822202
Master Station to Sub Stations: 4-cond., overall shield - use Aiphone #822206
Distance Door Station to Master Station: 500'(22AWG) 1,180'(18AWG)
Master Station to farthest Sub Master Station: 245'(22AWG) 580'(18AWG)

Components

IXGS-TE

Telephone and App Entry Box Kit...

thumb

JVS-1F Box Set

JVS-1F box set...

thumb

JVS-1V Box Set

JVS-1V box set...

thumb

JV-1MD Video Master Station

JV-1MD Video Master Station...

thumb

JV-1FD Video Expansion Station

JV-1FD Video Master Station...

thumb

JV-DVF Video Door Station

JV-DVF Flush Mount Vandal-Resistant Door Station...

thumb

JV-DV Video Door Station

JV-DV Vandal-Resistant Door Station...

thumb

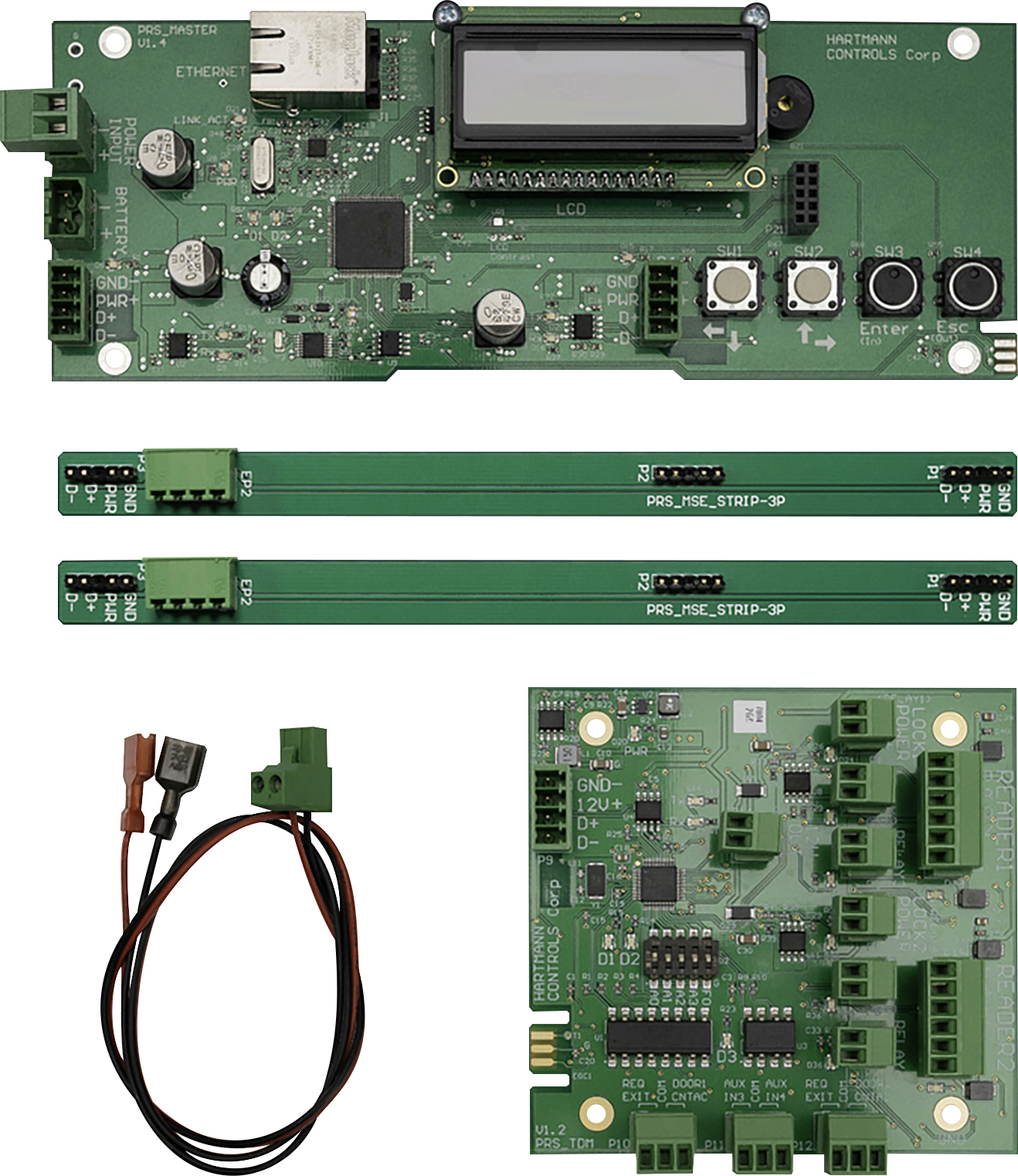

ACS-2DR
