- Two Wiegand reader inputs (per AC-2DE)
- Integrated lock power for each door (12V DC, 500mA)
- Two solid state dry contact relays (per door)
- Three dry contact inputs (per door)
- Built-in diagnostic LCD
- Custom scripting and actions available
- Can support up to 8 doors with additional AC-2DE
- Short and over-voltage protection
- Dedicated port for battery backup
- TAA and NDAA Compliant
ACS-2DR
Two-Door Access Control Starter Kit
The ACS-2DR starter kit is a 2-8 door master door controller which includes a master door control board and a two‑door expander board (AC‑2DE). This kit fits into the AC-CA1 enclosure (sold separately), which includes a power supply.
Each AC-2DE has contacts and reader inputs to control two doors. Up to three AC-2DE door control boards can be added to the AC-CA1 enclosure, allowing it to control up to eight doors. For each door, the AC‑2DE provides two dry contact outputs, one wet contact output, and three programmable contact inputs.
This kit can be used on its own or as part of a larger AC Series access control system with additional AC-2DM modules and ACS-2DR panels. The system is managed using the AC Nio management software, with partitioning options available.
System Highlights
|
Power Source

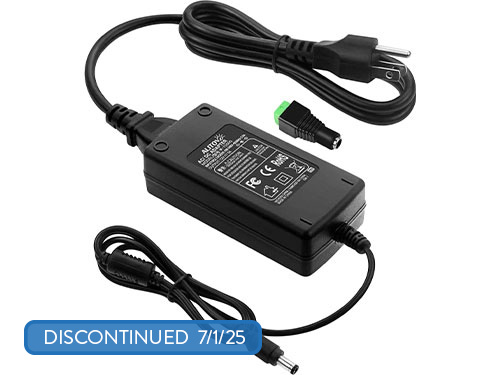

Master Door Control Board: 12V DC (AC-PS1250) Two-Door Expander Board: 2V DC (drawn from main board) |
|
NIC
Master Door Control Board: RJ45 Ethernet Port 10/100Mbp |
|
Board Communication
Master Door Control Board: RS485 (AC-STRIP) |
|
Protocols
Master Door Control Board: IPv4, IPv6, TCP, UDP, HTTPS |
|
Card Storage
Master Door Control Board: Up to 100,000 users |
|
Event Storage
Master Door Control Board: Up to 50,000 events (first in, first out) |
| UL/ULC UL 294/ULC S319-05 |
|
Lock Power and Option Power
AC-2DE: 12V DC 500mA |
|
Contact Rating
AC-2DE: 30V DC at 1A |
