JOS-1VW

Components
Mobile-Ready Box Set with Surface-Mount Door Station

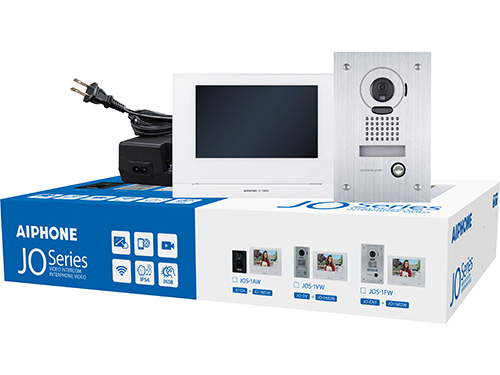

This box kit contains the JO-1MDW an analog answering station with a 7” touchscreen display and WiFi capabilities, allowing mobile apps to be added to a JO system. The JO-1MDW has two normally open dry contacts and built-in memory that can be utilized to record calls, with the option of increasing the storage capacity using a MicroSD card. The box kit also contains the JO-DV a surface-mount zinc die cast analog door station with an IP 54 rating and an IK08 rating. The box kit also contains the PS-1820UL a UL, and CSA listed 18v Class II power supply.

Features
  • Connect up to 8 mobile devices per system
  • Store calls with onboard memory
  • Add a MicroSD card to increase memory to a maximum of 32 GB
  • Watch recorded calls from the on-site master or on the mobile app
  • JO-DV activates white LED light for visibility at night

Specs

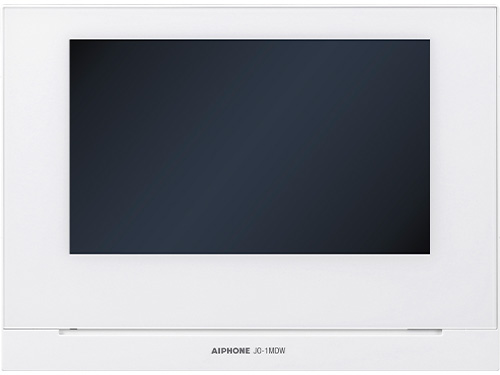

Inside Monitor

Model: JO-1MDW
Video Display: 7" TFT Touchscreen
Mounting: Surface wall mount or desk mount with MCW-S stand
Internal Call Recording: 10 calls max. @ 10 seconds/call
Memory Expansion: micro SDHC card slot, 32GB max.
Call Recording with max memory: 1,000 calls max. @ 10 seconds/call
Door Release: N/O dry contact, 24V AC/DC, 500mA
Communication style: Handsfree or PTT
Wireless Frequency: 2.4 GHz
Wireless Protocol: 802.11b, 802.11g, and 802.11n (Wireless B/G/N)

App

Model: Intercom App Type B
Max per system: 8 devices
Door Release: In app slider activates contacts at JO-1MDW
Available at: Apple App Store or Google Play

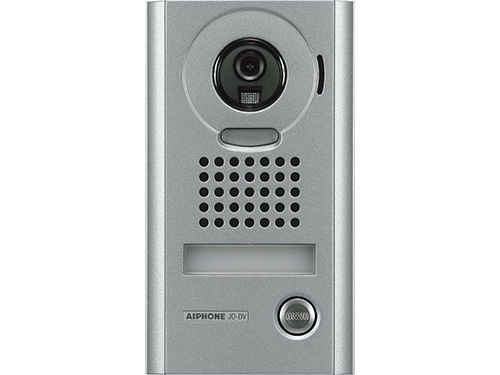

Video Door Station

Model: JO-DV
Power Source: Supplied by inside monitor
Camera: 1/4 inch color CMOS
Mounting: Surface wall mount using a 1 gang electrical box
Faceplate Material: Zinc die cast
Enclosure Rating: IP54
Impact Rating: IK08
Communication style: Handsfree
Volume: 72.1 dB
Operational Tempature: -40°~140° F (-40° ~ 60° C)
Wiring to master: 2-cond., low cap, solid, non-shielded
Max. Wire distance: 165' (22AWG) 330' (18AWG)

Power Supply

Model: PS-1820UL
Power Source:AC 100~240V 50/60Hz
Power Output: DC 18V 2A
