IXG-DM7-HID

thumb

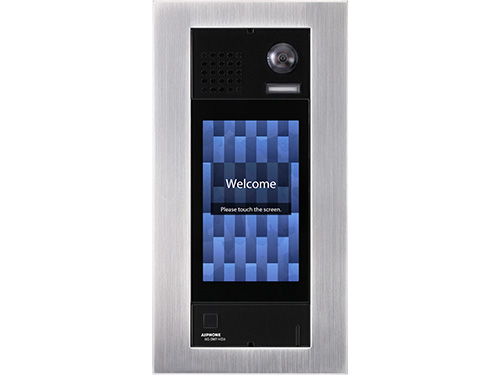

IP Video Entrance Station

This product has been discontinued as of 5/31/2024. Use replacement part IXG-DM7-HIDA.

With any building or parking garage, security starts at the entrance. The IXG-DM7-HID IP Video Entrance Station is modern and simple user touchscreen with an intuitive interface.


Features
  • Built-in HID® reader connects to third-party access control
  • Modern and simple user touchscreen interface
  • PoE
  • Programmable inputs and outputs
  • On-board recording with microSD™ card
  • Rugged IP65 and IK08 ratings
  • Features telecoil (t-coil) to assist individuals who are hard of hearing while wearing compatible devices
  • Two-way video available from door entry

Specs
Power Source PoE (IEEE 802.3af class 0)
Consumption 5.3 W Standby, 11.6 W Max.
Screen 7" TFT Display
Monitor resolution 800 x 400
Communication Full-duplex
Audio Codec G.711(µ-law, A-law)
Video Codec H.264
Protocol IPv4/v6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP/RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, DNS, TLS
Operating Temp -22° ~ 140°F (-30° ~ 60°C)
Dimensions 13-11/16" H x 7-3/16" W x 2" D
HID Reader Card Types:
High Frequency (13.56 MHz)
HID iCLASS, SEOS, HID iCLASS SR, HID iCLASS SE, HID MIFARE Classic, HID Mifare DES Fire EV1


Low Frequency (125 kHz)
HID Proximity

Bluetooth Interface (2.44 GHz)
Mobile Phone with compatible Bluetooth
Card Format H10301 (26-bit Wiegand)
