IM-1

thumb

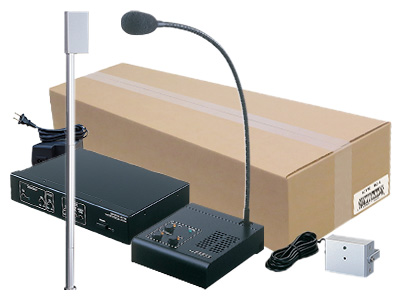

Cashier/Security Window System Box Set

Box Set includes: IMU-100, IAI-100, IAX-100, IME-100, ISE-100 and PS-242OUL.


Features
  • Box set includes all parts needed for 1 cashier/security window system
  • Inconspicuous units do not obscure faces of those approaching a ticket/customer window for added visibility and security
  • Flexible gooseneck microphone can be adjusted to virtually any position
  • Computer style headset can be used (not supplied by Aiphone)
  • Uses voice-actuated communication (VOX) system, requiring no additional operations during conversation
  • When the TALK switch is off, the operation unit is put on standby, but sound from public side is still heard at reduced volume
  • By linking the system to a motion sensor, communication mode is automatically activated when a customer is present

Specs
Communication Hands-free (VOX)
Transmit output: 3W 4Ω
Receive output: 1.5W 16Ω
Wire Type Speaker Driver to Control Unit: 2x2-cond., overall shield – use Aiphone #822202 or #821802
Power Supply to Control Unit: 2-cond., overall shield – use Aiphone #8222202 or #821802
Distance Power Supply or Speaker Driver to Control Unit: 66' (22AWG/18AWG)

Components

IME-100

Gooseneck Microphone...

thumb

IMU-100

Controller and Operation Unit Kit...

thumb

IAI-100

Speaker Driver and Acoustic I/O Tube Kit Includes DR-100 Speaker...

thumb

ISE-100

Proximity Sensor for IM System...

thumb

IAX-100

Acoustic Tube Extension, 3′...

thumb

SSB-3

Ceiling Support Bridge for SP-2570N...

thumb

SP-2570N

Ceiling Speaker, 25/70V Transformer, 5W...

thumb

PS-2420UL

24V DC Power Supply, 2A, UL Listed...

thumb

82220210C

2-cond, 22AWG, shielded wire, 1,000'...

thumb

82220250C

2 conductor, 22AWG, Shielded Wire, 500′...

thumb
