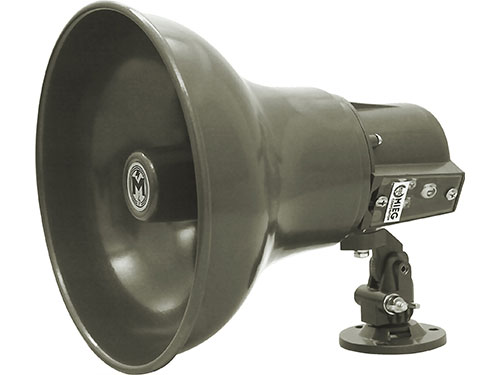

MH-15W

thumb

Multi-tap Paging Horn

The MH-15W provides a robust, weather-resistant solution for voice paging and signaling. Featuring all-metal construction, a wide frequency response, and external adjustable power taps, the MH-15W is suitable for demanding environments and installations.

The MH-15W can be used for 25V or 70V paging systems, and can be connected directly to an 8Ω output. It can be used with intercom systems for two-way communications that require and 8Ω direct tap.

The speaker mounts directly to a flat surface and can be adjusted to the desired angle.

System Highlights

Features
  • Lightweight aluminium horn
  • Weatherproof/waterproof construction
  • Universal mounting bracket
  • Build-in transformer for 100/70/25V systems
  • 8Ω direct tap

Specs
Power Rating 15W maximum
Frequency Response 375-14,000Hz
Sensitivity 120dB (measured at 1 meter on axis with 15W input)
Dispersion 110°
Impedence 5.0K/2.5K/1.3K/670/330/90/8 Ω
Materials Spun aluminum (horn body)
Die cast aluminum (driver unit housing)
