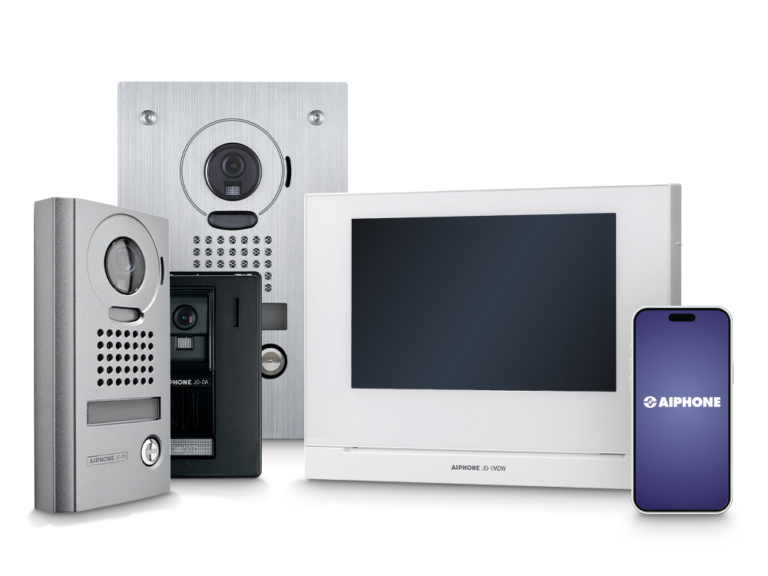

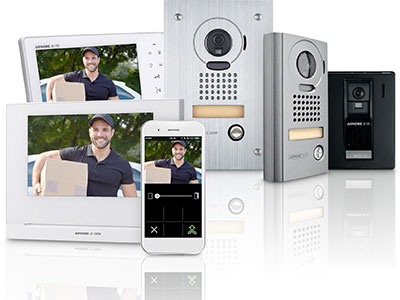

JO Series Video Intercom with Mobile App Capability

Series

It's the Best of Both Worlds

Get the reliability that comes with a hard-wired master station and the convenience of a mobile app. The JO Series Video Intercom with Mobile App is the solution for on‑the‑go home—and small‑business owners.

See. Talk. Unlock. Whether You're Busy or Not.

Identify visitors and grant access with the reliability of an interior station. Pair this system to the AC Series Access Control solution for the next level in entry control. The JO Series mobile app provides the ability to remotely unlock the door for your customers, appointments, or colleagues with a push of a button.

Whether it is a delivery or an unexpected visitor, your customers can choose to see and speak with their guests – and unlock the door – from anywhere. The interior master station ensures calls from the door station are not missed, even when the internet is down or slow. The mobile app is not required, a standard interior master station without mobile app capability is available.

The JO Series is available in box sets; easily expandable as you grow. Enjoy the benefit of a one-time cost without long-term contracts or storage fees.

Depend on Aiphone at Your Workplace

  • Convenient mobile app
  • Large 7″ touchscreen
  • Never miss a call with hardwired stations and audio only back-up
  • No storage or service fees
System Highlights
System Capacity
2
Doors
2
Monitors
8
Mobile devices
QuikSpec Plus
Generate complete equipment lists 24/7!
Save and download lists to include with proposals.
Features
Large Monitor
Mobile App
Videos

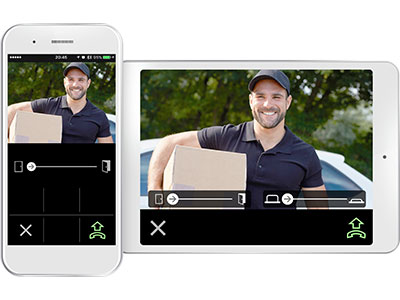

  • Answer calls and unlock your door from your mobile device
  • Easily identify visitors on the large 7″ screen
  • Review stored calls from the master station or mobile app
  • Store calls with no added fees using onboard memory
  • Increase call storage with a MicroSD™ card
  • Easy installation using just two wires, like existing doorbell wire
  • Fits most modern home decor

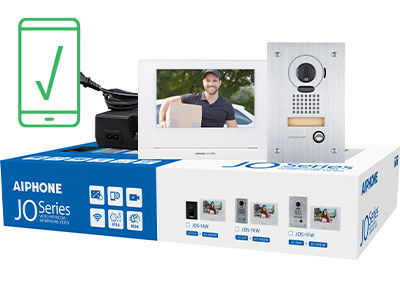

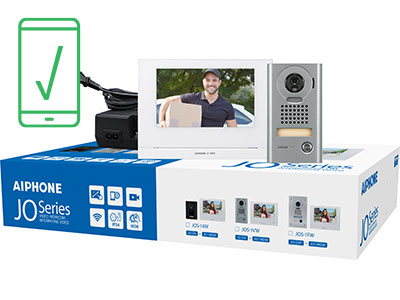

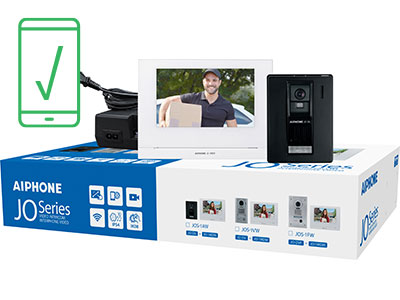

  • Available in convenient box sets!

Specs

Power Source

18V DC - use PS-1820UL

Calling

Chime with image, approx. 45 seconds

Communication

Open-voice (VOX) or push-to-talk (PTT)

Video Monitor

7" TFT color LCD touchscreen

Door Release

JO-1MDW: N/O dry contact, 24V AC/DC, 1A
JO-1MD, JO-1FD: N/O dry contact, 24V AC/DC, 500mA (use RY-1824L for larger contact rating)

Wire Type

Door to Master/Expansion stations: 2-cond., mid cap, solid, non-shielded - use Aiphone #871802
Extension Station to Master Station: 4-cond., mid cap, solid, non-shielded – use Aiphone #87104
Expansion Station to Master Station (with door release): 6-cond., mid cap, solid, non-shielded – use Aiphone #871804 + #871802

Wiring Distance

Door Station to Master/Expansion stations: 165' (22 AWG) 330' (18 AWG)
Door Station to Expansion Station: 165’ (22 AWG) 330’ (18 AWG)
Power Supply to Master Station: 16’ (22 AWG) 33’ (18 AWG)

Wireless Protocol

2.4 GHz IEEE802.11 b/g/n

Mobile App

Model: Intercom App Type B
Max per system: 8 devices
Available at: Apple App Store or Google Play
