IPW-10VC

Components
Rack Mount 2-Wire Network Adaptor Kit

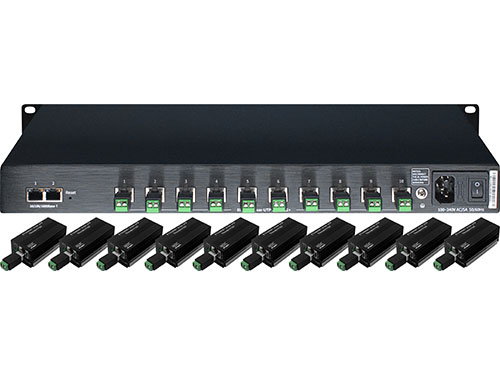

The IPW-10VC is an analog-to-IP converter kit that uses 2-conductor copper wire to connect IP intercom stations. The kit includes one IPW-10VR rack-mount receiver module and ten IPW-1VT transmitter modules.

The IPW-10VC can be used to convert these stations from ethernet cable to UTP:

IX-BA
IX-DA
IX-DV
IX-DVF
IX-DVF-2RA
IX-DVF-2RA-FR
IX-DVF-4A
IX-DVF-6
IX-DVF-PR
IX-DVF-RA
IX-DVF-RA-FR
IX-DVM
IX-DVM-FR
IX-EA
IX-MV
IX-MV7-B
IX-MV7-HB
IX-MV7-HW
IX-MV7-W
IX-NVP
IX-NVP2
IX-PA
IX-RS-B
IX-RS-W
IX-SDH
IX-SDH-P
IX-SS-2G
IX-SSA
IX-SSA-2RA
IX-SSA-2RA-FR
IX-SSA-RA
IX-SSA-RA-FR

Features
  • Works with existing 2-conductor wire
  • Supplies PoE to stations
  • LED Status indicators

Specs

Power Input

100-240V AC

Power Draw

260W max

Mounting

Supplied rack mount

LAN Ports

2 (RJ45)

UTP Ports

10 (RJ45 to UTP connector)

Cat-5e/6 to 2-wire Converter

15'

Calling Capacity

w/Video Station:
0-500' 5 master stations
501-1000' 3 master stations

w/Audio Station:
0-1000' 7 master stations

Operation Temp

-4°~158°F (-20°~70°C)

Dimensions

1-3/4" H x 19" W x 11" D
