- Compression type, double re-entrant loudspeaker
- Adjustable speaker, 1, 2, 4, 8, or 16W
- 121 dB volume rating
- Built-in transformer for 25 or 70V systems
- Horizontal or vertical mount
- Adjustable angle
- Tan enamel finish

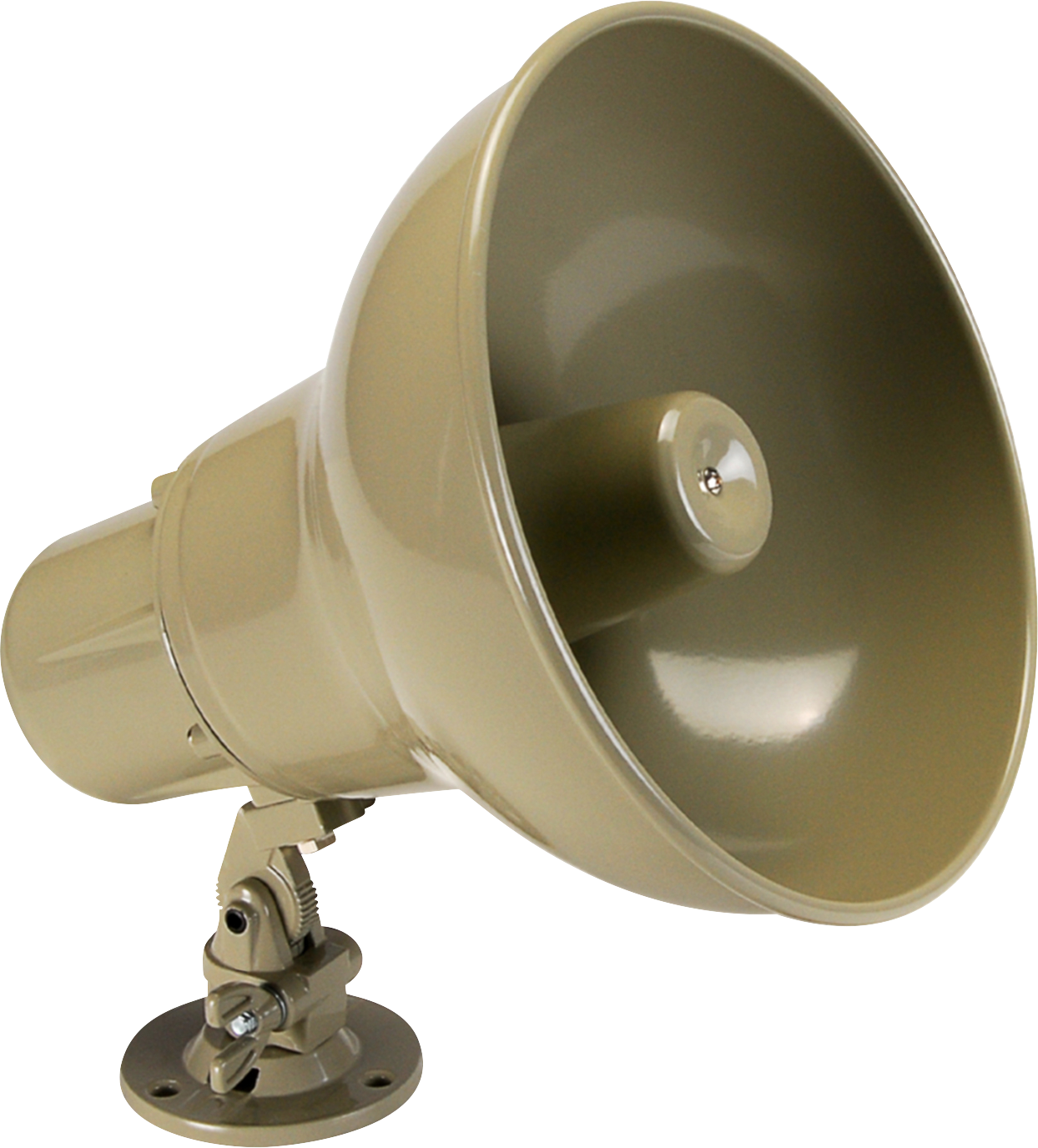

AH-16T (Launching 10/1/25)
Horn Speaker
The AH-16T is a weather-resistant, 16W horn speaker. It can accept a 25 or 70 volt input signal, and has a rotary tap selector that can adjust the output to 1, 2, 4, 8, or 16 watts. It can be mounted horizontally or vertically, and has an adjustable
System Highlights
| Speaker Sensitivity 110 dB SPL, 1W/1M |
| Power Rating 16W RMS, IEA 426A Standard |
| Calculated Output 121 dB SPL, 16W/1M |
| Frequency Response 450Hz - 15kHz EIA, 426A Standard |
| Nominal Coverage Angle 110° included angle, -6 dB/2kHz, Half Space |
| Audio Connection Screw Terminals |
| Horn Dimensions 7 5/8" DIA x 9 3/16" L |
| Mounting Base Dimensions 3 1/8" DIA |
| Weight 5 lbs. |
| Transformer 25/70V 16W-5 tap, rotary select (16W, 8W, 4W, 2W, 1W) |
