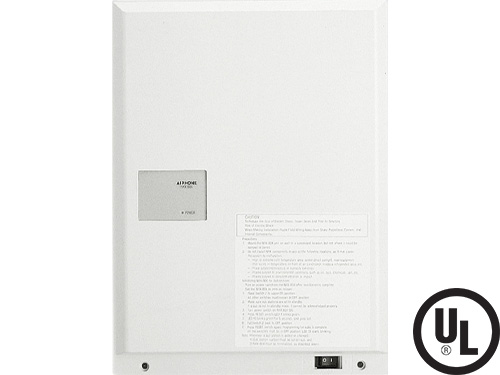

NHX-80X

thumb

Central Control Unit

Controls system functions with microprocessor. Add the NHR-30K for additional capacity.


Features
  • UL 1069 Listed
  • Controls system functions with microprocessor
  • All wire terminations are made inside with easy “screwless” wire connections

Specs
Wire Type Sub / Duty Station to Central Control Unit: 4 twisted pair, low cap, PE, overall shield - use Aiphone #862208
Master Station to Central Control Unit: 5 twisted pair, low cap, PE, overall shield - use Aiphone #862210
Distance Sub Station to Central Control Unit: 165'(22AWG)
Duty Station to Central Control Unit: 65'(22AWG)
Master Station to Central Control Unit: 65'(22AWG)
Sub Station to Central Control Unit: 165'(22AWG). Max. cumulative wire distance per trunk line: 330'(22AWG).

Components

NHX-50M

50-Call Audio Master Station with Handset Features 3 call levels...

thumb

NH-1SA/A

Single-Jack Bedside Audio Sub Station...

thumb

NH-2SA/A

Dual-Jack Bedside Audio Sub Station...

thumb

NHR-3TS

Dual Corridor Light Sub Station...

thumb

NHR-SP

Audio Duty Station...

thumb

NHR-30K

30-Call Add-On PC Board for 51-80 Stations...

thumb

NHR-4A/A

Dual LED Corridor Lamp...

thumb

NHR-7A

Urgent Call Pull Cord...

thumb

NHR-8A-L

Bedside Call Cord...

thumb

NHR-8C

Bedside Call Button...

thumb

NHX-30G

30-Call Add-On Selector...

thumb

SBX-2G/A

Surface Mount Box...

thumb
