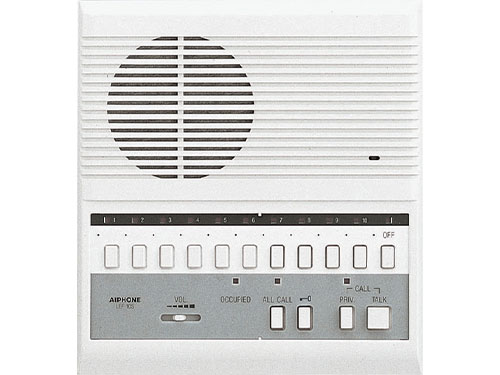

LEF-10S

thumb

Analog 10-Channel Master Station with All Call

The LEF-10S is a selective calling open voice style master station with a capacity of up to 11 total stations.


Features
  • Supports up to 11 total master, sub, or door stations
  • LED and tone to announce incoming calls
  • Push-to-talk at calling master station
  • Hands-free communication at responding station
  • Large variety of sub and door stations
  • Selective monitoring
  • Privacy feature prevents unauthorized monitoring
  • Voice and call tone volume controls
  • Selective door release
  • Plays background music (requires additional equipment)
  • All Call button (requires additional equipment)

Specs
Power Source 12V DC, 300mA per station. Use PS‑1208UL, or PS-1225UL for systems with BG-10C.
Output 800mW @ 20Ω (reception)
500mW @ 20Ω (transmission)
Communication Press-to-talk, release-to-listen at master station. Hands-free at responding station.
Talk Channel 1 talkpath. Occupied LED when in use.
Wiring 5 common wires (E, R, Y, +, -), plus 1 individual wire per station, looped.
Sub stations: 2 wires homerun in single master systems, or 2 common wires (E, -), plus 1 individual wire per station, looped or homerun.
Capacity Up to 11 stations, intermixable
Wiring Distance 650' w/22AWG; 1600' w/18AWG
Operation Temp 32°~104°F (0°~40°C)
Dimensions 8-1/18" H x 7-1.2" W x 2-3/16" D
