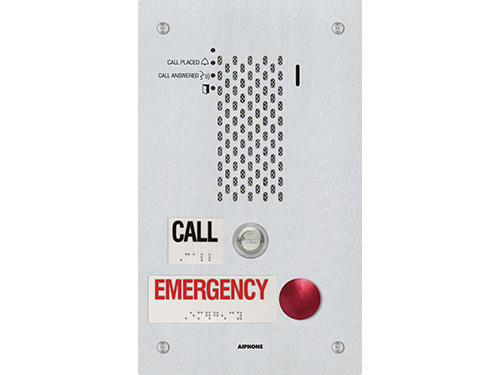

IX-SSA-2RA

thumb
Flush Mount, IP Emergency Call Station

The IX-SSA-2RA is a flush mountable, vandal and weather resistant, stainless-steel IP Audio Intercom featuring an ADA compliant emergency call button alongside the standard call button. Compliant with SIP and compatible with all IX | IXG devices.


Features
  • SIP Compliant
  • ADA compliant raised lettering and Braille signage
  • PoE with PoE pass through
  • Slot for microSD card (not provided by Aiphone)
  • IP65 rated, weather resistant
  • Stainless steel faceplate
  • 2 contact outputs
  • 6 trigger inputs
  • UL certified

Specs
Power Source PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL) PoE pass through (802.3at Type 2 PoE+)
Power Draw 3.36 Watts @ 48V DC
Audio Codec G.711 (μ-law, A law), G.722
Volume 73dB-96dB
Port Security IEEE 802.1X
Operating Temp -40° - 140°F (-40° - 60°C)
Ingress Protection IP65
Impact Protection IK08
Dimensions 11-11⁄16" H x 7" W
Mounting Flush mounted with included back box, or surface mount with the SBX-IDVFRA Stainless Steel surface mount box. Also compatible with the WB-CA, WB-HA, WB-CE, and WB-HE Emergency wall boxes or modular towers.
