IX-DVF-PR

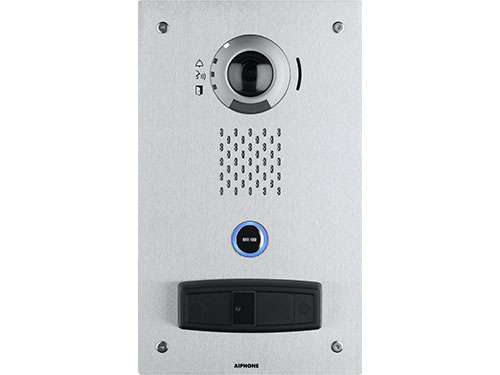

Flush Mount IP Video Door Station with Proximity Card Reader

The IX-DVF-PR is a flush mount, vandal resistant, and weather resistant IP Video Intercom, featuring a stainless-steel front cover and a built-in AC-PROX-1G proximity card reader. The IX-DVF-PR is SIP compliant, ONVIF ® Profile S compliant, and is capable of streaming video feeds through ONVIF and RTSP. The IX-DVF-PR is compatible with all IX | IXG series devices.

System Highlights

IX-DVF-PR Specification

IXG Quick Start Guide

IXG Support Tool

IXG Series Network Security Summary

IX-DVF-PR Firmware

IX | IXG Series Home Page

AC-PROX-1G proximity card reader

AC Series Home Page

Features

1.23 megapixel fixed video camera
White LED for low light illumination
Camera vertical adjustment +15°, 0°, or -8° (manual)
Built-in proximity card reader
Flush mount with included back box
Weather and vandal resistant stainless steel panel
Slot for microSD™ card
Two contact outputs, six trigger inputs
PoE pass-through

Specs

Door Station	Door Station
Power Source	Power Source PoE (IEEE 802.3af class 0) or 24V DC (PS2420UL) PoE pass through (802.3at Type 2 PoE+)
Power Draw	Power Draw 5.28W
Camera	Camera 1/3" CMOS 1.23 megapixel
Min. Illumination	Min. Illumination 5 lux
Audio Codec	Audio Codec G.711 (μ-law, A law), G.722
Video Codec	Video Codec H.264/AVC, motion JPEG
Volume	Volume 73dB-96dB
Port Security	Port Security IEEE 802.1X
Operation Temp	Operation Temp -40°~140°F (-40°~60°C)
Protection	Protection IP65
Impact Protection	Impact Protection IK08
Dimensions	Dimensions 11-11/16" H x 7" W x 2-1/16" D
Card Reader Specifications	Card Reader Specifications
Power Input	Power Input 5~14V DC
Power Draw	Power Draw 45mA
Frequency	Frequency 125kHz
Certifications	Certifications CSA, FCC, CE, C-Tick
Operation Temp	Operation Temp -31°~140°F (-35°~60°C)
