IX-DVF-2RA

thumb

SIP Compatible IP Video Emergency Station

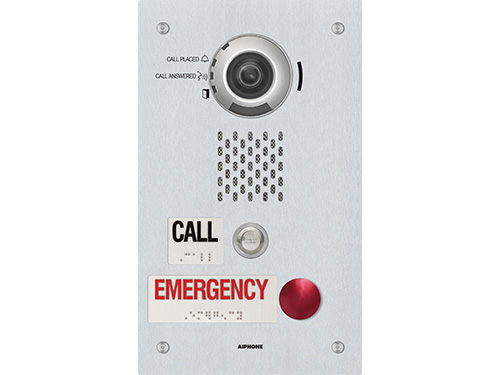

The IX-DVF-2RA is a flush mount, vandal resistant, and weather resistant IP Video Intercom, featuring a stainless-steel front cover, a standard call button and an ADA compliant emergency call button. The IX-DVF-2RA is SIP compliant, ONVIF ® Profile S compliant, and is capable of streaming video feeds through ONVIF and RTSP. The IX-DVF-2RA is compatible with all IX | IXG series devices.


Features
  • SIP Compliant
  • ONVIF® Profile S Compliant
  • ADA compliant raised lettering and Braille signage
  • PoE with PoE pass through
  • Camera vertical adjustment +15º, 0º, or -8º (manual)
  • White LED for low light illumination
  • Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
  • IP65 rated, weather resistant
  • Stainless steel faceplate
  • 2 contact outputs
  • 6 trigger inputs
  • UL certified

Specs
Power Source PoE (IEEE 802.3af class 0) or 24V DC (PS2420UL) PoE pass through (802.3at Type 2 PoE+)
Power Draw 5.28 Watts
Camera ⅓" CMOS 1.23 megapixel
Min. illumination 5 lux
Audio Codec G.711 (μ-law, A law), G.722
Video Codec H.264/AVC, motion JPEG
Volume 73dB-96dB
Port Security IEEE 802.1X
Operating Temp -40° - 140°F (-40° - 60°C)
Ingress Protection IP65
Impact Protection IK08
Dimensions 11-11⁄16" H x 7" W
Mounting Flush mounted with included back box, or surface mount with the SBX-IDVFRA Stainless Steel surface mount box. Also compatible with the WB-CA, WB-HA, WB-CE, and WB-HE Emergency wall boxes or modular towers.
