- Two talk channels
- Composite video output from CEU and master station
- Scan monitoring
- PC programmable with a variety of settings
- Standard or priority call levels from sub stations
- Communication privacy between master stations
- Low light illumination and weather resistant video door stations
- Transfer calls to an outside POTS line (requires Viking Model K-1900-5 programmable dialer)
- Stations home run back to the CEU on Cat-5e/6 wire

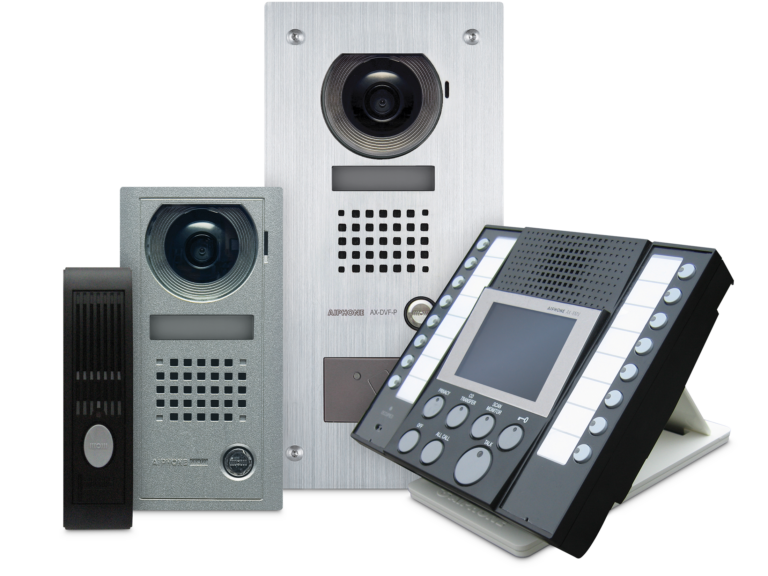

AX Series
System Highlights
QuikSpec
QuikSpec has moved to the AiphoneCloud
Login or Create your account.
| Power Source 24V DC - Use two PS-2420UL (110V AC) per system |
| Communication Hands-free (VOX) or push-to-talk (simplex) |
|
Consumption
Video: 0.62A max Audio: 0.65A max |
| Door Release Programmable dry contact, 24V AC/DC, 500mA (use RY-1824L for larger contact rating) |
|
Wire Type
CAT-5e UTP-4 homerun from each station to CEU Power Supply to CEU and Add-on CEU: 2-cond., overall shield – use Aiphone 821802 wire |
|
Wiring Distance
980' – Master, Door, and Sub Station to CEU/Add-on CEU 16’ – CEU to Add-on CEU 16’ (22 AWG) & 33’ (18AWG) – Power Supply to CEU and Add-on CEU |
| CO Line Port RJ11 for Viking K-1900-5 programmable auto-dialer |
|
Mounting
CEU - 19” EIA rack (2U) or wall mount. Master stations – surface/wall or desk (use MCW-S/B for adjustable desk angle) Video door stations – surface/wall or mullion Audio door stations – surface/wall or mullion |
