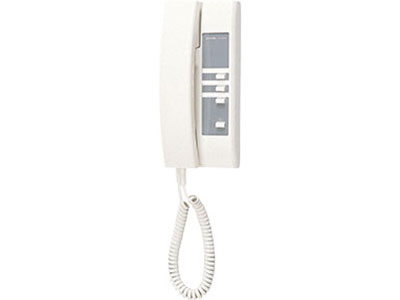

TD-1H/B

Components

1-Call Handset

Features
  • Single talk path for communication and paging
  • Handset cradle for wall mounting can be reversed for desk use
  • Station-select break-in call

Specs

Power Consumption

70mA per station

Type of communication

Handset (full-duplex)

Door Release Contact

N/O dry contact, 30V AC/DC, 1A (at DE-UR)

Mounting

Desk mount or surface mount directly to wall or 1-gang box

Wire Type

6-cond., overall shield - use Aiphone #822206

Wire Distance

Between TD Master Stations: 2,200'(22AWG) 4,800'(18AWG)
