System Capacity
40
Sub Stations
1
Masters

NIM Series

Series

Lamp Tone Intercom

The NIM Series is a Lamp Tone Intercom supporting a single master station and up to forty sub stations. Calls to the sub stations can be placed selectively or via All Call from the master station. Calls from a sub station will sound at the master and activate a light, displaying the location of the call.

Freakishly Reliable

Aiphone is proud to be a rare, two-time winner of the prestigious Deming Prize for quality management and manufacturing processes. Our ISO Certified process and rigorous standards result in some of the most reliable products in the industry. Aiphone products routinely last for years, only being replaced when the application outgrows the system capacity.

System Capacity
40
Sub Stations
1
Masters
QuikSpec
QuikSpec has moved to the AiphoneCloud
Login or Create your account.
Features

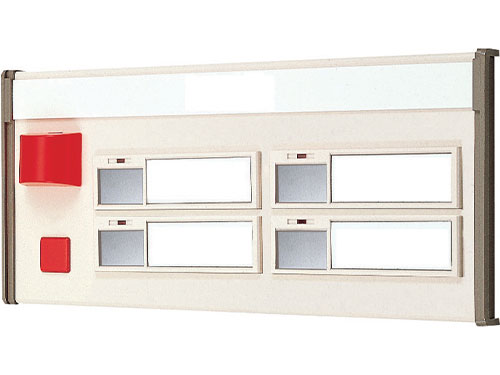

  • Master station in 20 and 40-station sizes
  • Built-in All Call, Selective Call, and Group Call
  • Push-to-talk at master or use handset
  • Group Call up to 5 subs at a time
  • Incoming calls remain lit until answered (max. 10)
  • Separate transmit and receive volume controls
  • Adjustable ring tone (melody or chime)
  • Automatic ringtone volume level (increases after 90 seconds)
  • Optional software for call event logging (NI-SOFT)

Specs

Power Source

48V DC - use IS-PU-UL

Communication

Handset (VOX) or push-to-talk (simplex)

Wire Type

Door Station, Sub Station, Ceiling Speaker, or Wall Jack to Master Station: 3-cond. overall shield - use Aiphone #821803
Call Button or Corridor Lamp to Sub Station: 2-cond. overall shield - use Aiphone #821802
NIR-MB to Ceiling Speaker: 4-cond. overall shield - use two runs of #821802

Distance

Door Station or Sub Station to Master Station: 650'(18AWG)
Power Supply to Master Station: 33'(18AWG)
