MD35M
Components

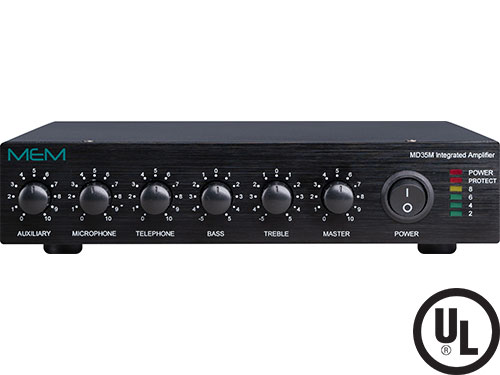

35 Watt Integrated Paging Amplifier
3 Channel - VOX -MOH - Phone and VoIP Interface
Jump to:
Features
- 3 Channel Inputs
- Wide Frequency Response
- Very Low Distortion
- Balanced Microphone Input
- Phantom Power on MIC Input with Selector
- Balanced Telephone Paging Input
- VoIP Telephone Paging Input
- Tel and Mic Vox Sensitivity Control
- Independent Input Controls
- Bass and Treble Controls
Specs
Power Output
35 Watts RMS
Distortion
Less than 0.5% THD
Frequency Response
20 - 20,000 Hz ± 2 db
Power Requirement
120 Volt, 50-60 Hz
Power Consumption
110 VA
Terminations
Phoenix Connectors, RCA Jacks
Dimensions
12.5" X 8.5" x 1.75"
Net Weight
10.95 Lbs
