LEF Series

Series

Audio Only Intercom

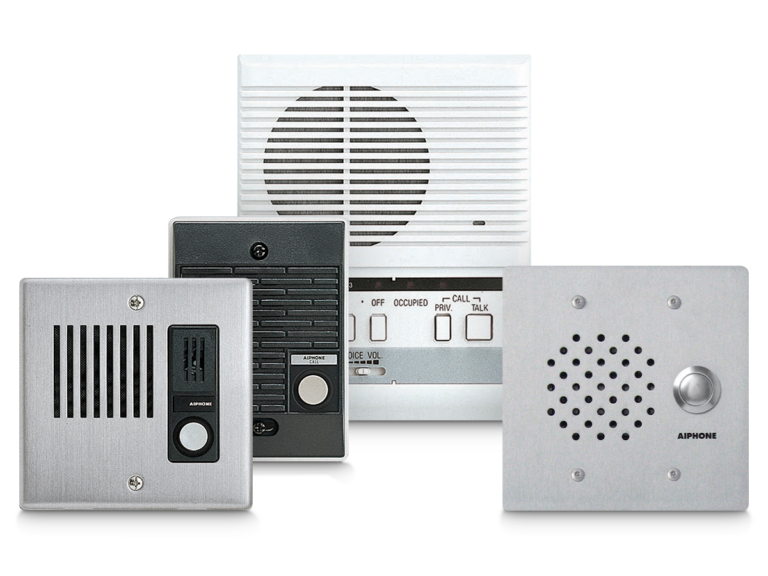

The LEF Series is a selective calling, open-voice audio intercom system designed for push-to-talk communication between door and master stations. With a push of a button from the master station, it triggers a simple door release activation unlocking the door controlling access and entry. This basic, but rugged audio intercom system is designed to meet a wide variety of configurations. Mix and match components, as well as integrate with CCTV and paging systems. Audio door stations are weather resistant, tamper proof, and backed by our superior service. Integrate with the AC Series for a more comprehensive access and entry control security solution.

System Highlights
System Capacity
10
Doors
11
Masters
QuikSpec
QuikSpec has moved to the AiphoneCloud
Login or Create your account.
Features
Selective Door Release
  • Monitoring and selective calling
  • Push-to-talk at master, hands-free reply at called station
  • Selective door release on LEF-3L, LEF-5, LEF-5C, LEF-10, LEF-10S, and LEF-10C master stations (requires one RY-PA per door)
  • All Call with LEF-10S and all LEF-C masters requires BG-10C
  • Mix and match doors, masters, subs, speakers, and paging adaptors, up to 11 components in total

Specs

Power Source

12V DC standard systems use the PS-1208UL. Systems with a BG-10C use the PS-1225UL.

Communication

Push-to-talk (simplex)

Door Release

N/O dry contact, 24V DC, 1A (one RY-PA per door strike)

Wire Type

Variable wire types, refer to catalog.

Distance

Door Station or Sub Station to farthest Master Station: 650’ (22-AWG) 1,600 (18AWG)

Back Box Depth

Recommended 2-½” minimum for all flush-mount stations
