System Highlights
System Capacity
5,000+
Door Stations
5,000+
Master Stations

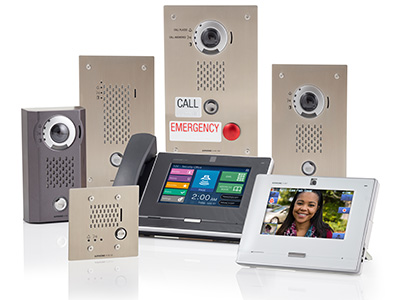

IX Series Peer-to-Peer IP Video Intercom with SIP Capability

Series

Unlimited. Flexible. Security.

The IX Series offers the power of a networked enterprise security solution and the simplicity of a single intercom system, this platform grows with you. The easy-to-use programming tools and flexible configurations make set-up a snap. Start small or integrate with our technology partners to expand your current video and security management systems with the IX Series to create a powerful, comprehensive security system.

Mix and Match

The IX Series is a perfect solution for commercial sites, schools, mixed-use campuses, industrial facilities, parking garages, retail, governmental, and correctional facility applications. Add emergency towers, and other accessories like gate and elevator controllers, guard stations, and virtual receptionists. Integrate your IX Series system with the AC Series, our new access control system, for next level entry control. Trigger calls on access events like read failure, or attempted use of deactivated credentials, and more. Systems can grow anytime, along with backward/forward compatibility making adding or upgrading an existing system much easier.

With picture-in-picture, master stations can toggle between ONVIF® Profile SIP cameras and our additional 1.3-megapixel cameras. An IP camera integration makes it easy to toggle between the close-up view at the video door station and the wide view of the IP camera. Plus, you can monitor systems with device supervision with scheduled or manual system checks. Line supervision ensures all stations are online while the device check verifies every button, station speaker, and microphone are always operating properly.

System Highlights
System Capacity
5,000+
Door Stations
5,000+
Master Stations
QuikSpec Plus
Generate complete equipment lists 24/7!
Save and download lists to include with proposals.
Features
Peer-to-peer
Network Based
VMS
  • Scalable system with unlimited station capacity
  • Integration with key platforms: VMS, NVR, SIP communication, mass notifications, network cameras, and more
  • SIP/VoIP allows outgoing calls directly to a phone line or call center, integrates with PBX systems
  • Partitioning for flexible configurations
  • Network and on-board recording with microSD™ capture audio and video
  • TAA and GSA compliant
  • UL Listed and ADA compliant stations
  • Master stations with two-way video and mobile app capabilities
  • Optional elevator lift control adaptors – up to 16
  • Turn your PC into a master station with IX-SOFT
  • 2-year warranty!
  • Certified solution partner with Cisco Unified Call Manager
  • Certified solution partner with LenelS2 OnGuard integrated access control system
  • Certified DevConnect Technology Partner with Avaya IP Office™, Avaya Aura® Communication Manager

Visit Technology Partners to see all current integration options.

Download the IX Series product brochure for a more comprehensive list of features with configuration examples.

For more real-world and innovative intercom solutions check out these Solution Showcases.

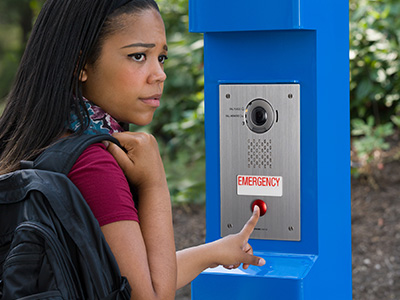

Need emergency components? Check out these Emergency Solutions.


Specs

Power Source

PoE (802.3af) IX-DV, IX-DVF, IX-DVF-4a, IX-DVF-6, IX-SSA: PoE (802.3af) PoE+ (802.3at), or 24V DC - use PS-242OUL

Network Interface

10 BASE-T / 100 BASE-TX Ethernet (RJ-45)

Network Protocols

IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, DNS

Bandwidth Usage

Audio (G.711): 64Kbps x 2 for communication, 64kKbps for monitoring. Video (H.264): 24Kbps ~ 8,192Kbp

Video Streaming

ONVIF® Profile S or RTSP

Communication

Hands-free or handset (full duplex), push to talk (simplex)

Camera

Type: 1/4" color CMOS VGA

Wire Type

Cat-5e or Cat-6

Wiring Distance

Door Station, Emergency Station, Sub Station, Master Station, or Network Adaptor to Network Note: 330’
