IX-MV7-HB-L

Components

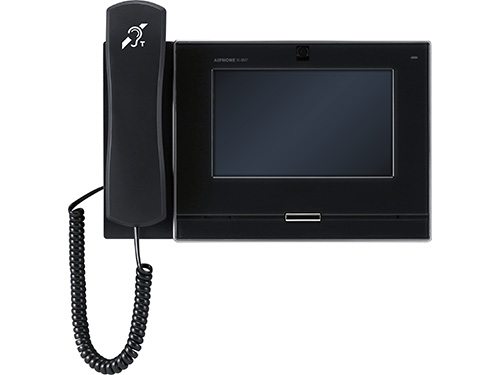

The IX-MV7-HB-L is an IP master station with a 7" color touchscreen and T-Coil hearing aid supported handset. It can be wall or desk mounted (desk stand included). The IX-MV7-HB-L connects to a network using Cat-5e/6 cable and is SIP compliant. Audio and video of active conversations can be captured and stored on a microSD™ card. Each master station has an address book of 500 stations and can monitor a single station or scan monitor stations within the address book. The master station offers line supervision and a scheduled device check of stations in its address book. It has the ability to page all stations or groups of stations and offers bell scheduling with 50 events per day.

The master station has eight programmable speed dial buttons that can be used to call, page, monitor, or control a contact closure. It has a built-in camera with privacy shutter. The master station can view any intercom’s camera, as well as an associated ONVIF Profile S camera, by using the Picture-in-Picture (PIP) function. It has the ability to release the door associated with the station that is in communication. Stations can be called by using the directory or by direct dialing the station’s number.

Features
SIP
ONVIF® Profile S Compatibility
Peer-to-peer

• T-Coil hearing aid supported handset
• 7” TFT color LCD touchscreen
• Fixed color video camera with privacy shutter
• SIP 2.0 compliant
• 500 station address book
• ONVIF Profile S compliant
• Multi-angled desk stand (30°, 45°, 60°)
• Slot for microSD™ card (not provided by Aiphone)
• 802.3af PoE compliant
• 2 contact outputs, 4 trigger inputs
• 8Ω 0.5W speaker output
• 600Ω audio input


Specs

Power Source:

PoE (IEEE 802.3af class 0)

Power Draw:

4.32W

Camera:

⅓" CMOS 720p

Min. illumination:

5 Lux

Audio Codec:

G.711 (μ-law, A law), G.722

Video Codec:

H.264/AVC, Motion JPEG

Protocols:

IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP

Port Security:

IEEE 802.1X

Operating Temp:

32° ~ 104°F (0° ~ 40°C)

Dimensions:

8-1⁄16" H x 11" W x 2-3⁄16" D
