IX-DVM

Components

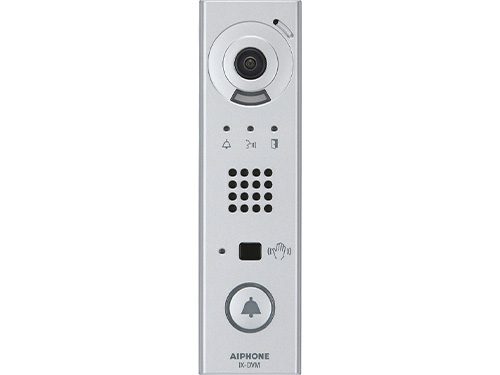

IP Video Door Station With Touchless Sensor, Mullion Mount, TAA Compliant

Our IX-DVM won the SIW 2022 Readers' Choice Awards for top product in the COVID-19 Mitigation category. It has a built-in Class 1 laser sensor for touchless calling, helping to reduce germs in high-traffic areas. The IX-DVM is a UL Listed mullion-mount IP video door station that is weather and vandal resistant. The station is equipped with a 720p HD, wide dynamic range camera that can be streamed to third-party devices using ONVIF® Profile S or RTSP. Video can be captured on a microSD™ card.

The IX-DVM can be programmed to call up to 20 different stations with three different call level selections.

Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start, error message, and more). The stations have audible and LED indicators for calling, communication, and door release.

There is one contact output that can be used for door release, and one input that can be used to trigger an outgoing call or answer a call/page.

System Highlights
SIP
ONVIF® Profile S Compatibility
Features
  • Small form factor for mullion mounting
  • Contactless call sensor
  • SIP 2.0 compliant
  • 720p HD, wide dynamic range camera
  • White LED for low-light illumination
  • ONVIF Profile S compliant
  • Slot for microSD™ card (not provided by Aiphone)
  • One contact output
  • One trigger input
  • 802.3af PoE compliant
  • Certified DevConnect Technology Partner with Avaya IP Office™, Avaya Aura® Communication Manager.
  • UL Listed and Manufactured in a TAA compliant country

Specs

Power Source:

PoE (IEEE 802.3af class 0)

Power Draw:

4.6W max.

Camera:

720p HD, wide dynamic range

Camera angle:

Approx. 170° horizontal

Class 1 laser:

This product incorporates a Class 1 laser. (transmissions conform with IEC 60825-1:2014)

Relay Output Output Method:

Form C dry contact (N/O or N/C)

Contact Rating:

24V AC, 1A (resistive load) 24V DC, 1A (resistive load)

Audio Codec:

G.711 (μ-law, A law), G.722

Video Codec:

H.264/AVC, motion JPEG

Protocols:

IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS

Port Security:

IEEE 802.1X

Operating Temp:

-40° ~ 140°F (-40° ~ 60°C)

Protection:

IP54, IK07

Dimensions:

1-7/8" W x 1-5/16" L x 6-7/8" H
