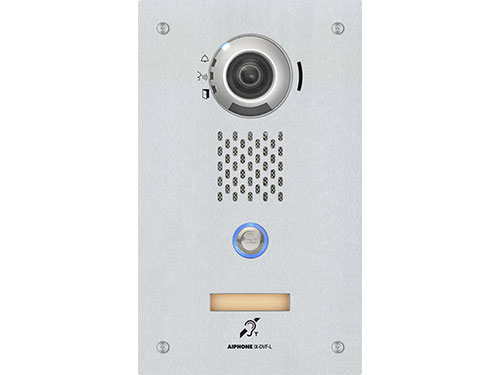

IX-DVF-L
IP Video Door Station with T-Coil Compatibility
The IX-DVF-L is flush mount, weather resistant, IP video door station, with a built-in circuit that supports T-coil compatible hearing aids. It connects to a network using Cat-5e/6 cable and is SIP compliant. Equipped with a 1.23 megapixel fixed color camera. The video can be streamed to third-party devices using ONVIF Profile S or RTSP. Audio and video can be captured on a microSD™ card.
Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start, error message). The stations have audible and visual indications for calling, communication, and door release.
- SIP 2.0 compliant
- 1.23 megapixel fixed color video camera
- White LED for low light illumination
- ONVIF Profile S compliant
- Camera vertical adjustment +15º, 0º, or -8º (manual)
- Slot for microSD™ card (not provided by Aiphone)
- Weather and vandal resistant
- 2 contact outputs/6 trigger inputs
- T-coil hearing aid support
- Stainless steel
- 802.3af PoE compliant
- RJ45 in/out with PoE pass-through (802.3at Type 2 PoE+)
Power Source
PoE (IEE 802.3af class 0) and 24V DC (PS-2420UL)
Power Draw
5.28W
Camera
⅓" CMOS 1.23 megapixel
Min. illumination
5 lux
Audio Codec
G.711 (μ-law, A law), G.722
Video Codec
H.264/AVC, motion JPEG
Protocols
IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, DNS
Port Security
IEEE 802.1X
Operating Temp
-40° ~ 140°F (-40° ~ 60°C)
Protection
IP65, IK08
Dimensions
11-11⁄16" H x 7" W x 2-1⁄16" D
