System Highlights

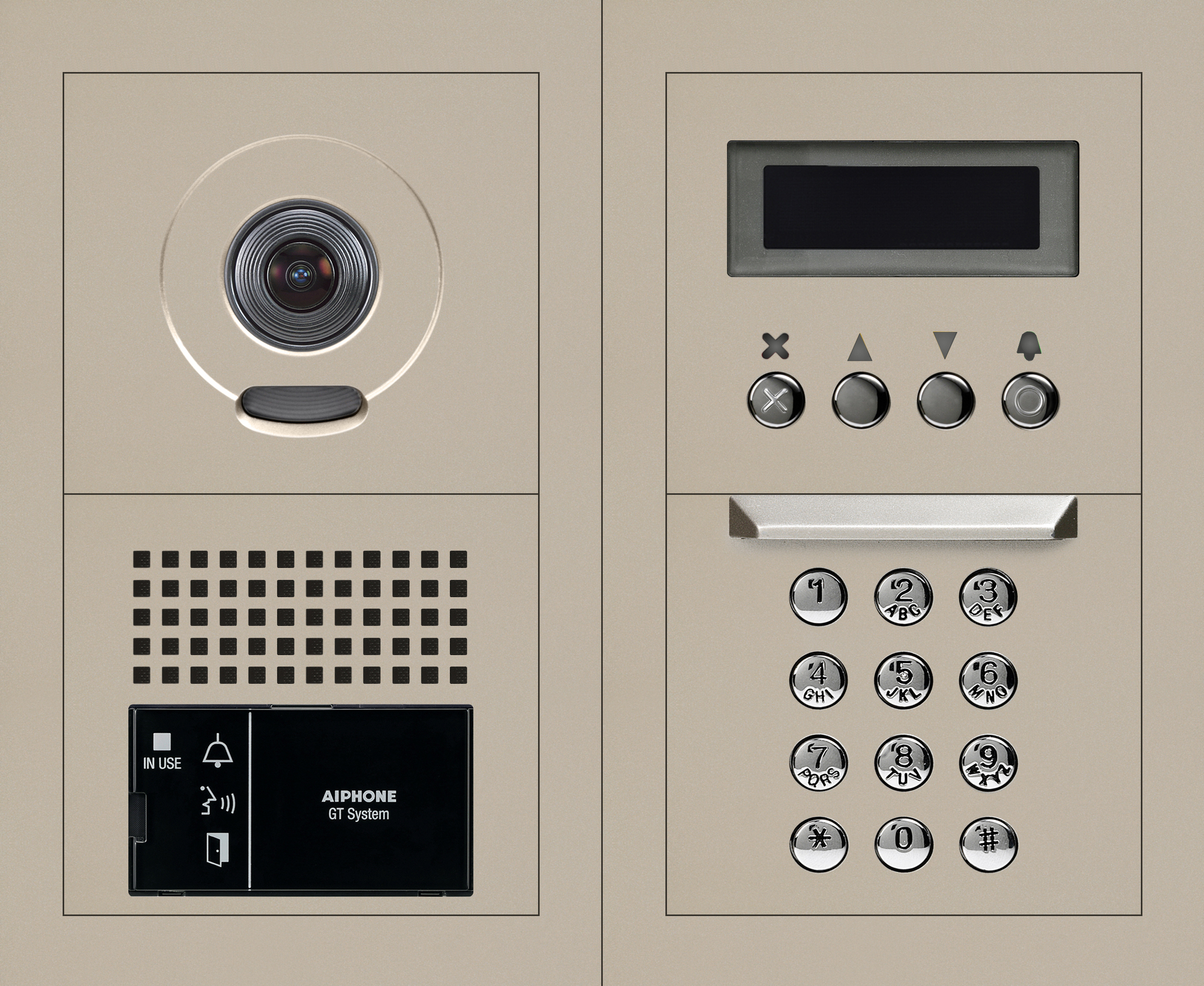

10-Key Video Entrance Panel Kit, 2x2 Size

System Highlights
  • Contains GT-DB audio module, GT-VB video module, and GT-NSB digital display and directory
  • GT-10K keypad for direct dialing and access control
  • Includes two GF-2F frames and two GF-2B flush back boxes
  • VFD screen displays a customizable greeting message, tenant directory, and system status
  • Surface mount with the stainless steel GT-202HB


Power Source

24V DC, use specified number of
PS-2420UL per system configuration


Hands-free from entrance panel to
tenant station


Max. 16 Entry panels per system
Max. 4 Concierge stations per system
Max. 500 Tenant stations per system
Max. 4 Tenant stations per unit


Two sets of 2-conductor, PE insulation
(two common buses for audio & video)
Aiphone #872002, 2 conductor PE
insulated, non-shielded, 11.05 pf/ft (Audio)
Aiphone #871802, 2 conductor PE
insulated, non-shielded, 11.05 pf/ft (Video)

Wiring Distance:

GT-BC to farthest entrance: 980'
GT-BC to farthest tenant (audio): 980'
GT-VBC to farthest entrance: 980'
GT-VBC to farthest tenant (video): 500'


GT Series
