AC Nio™

Products

AC Nio™

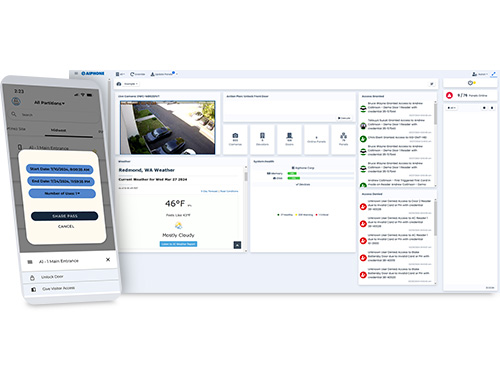

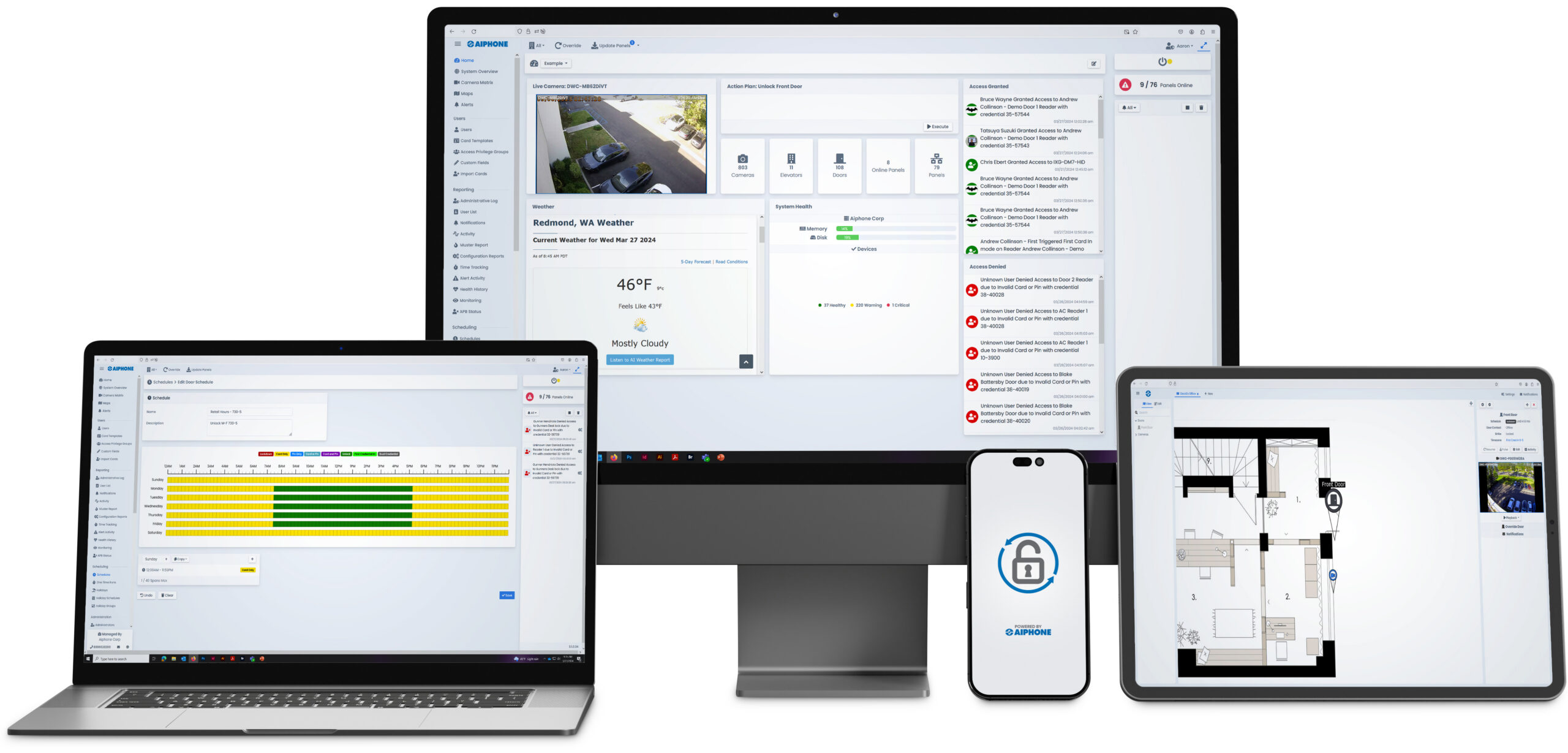

AC Nio™ is the software at the heart of the AC Series access control system. AC Nio is intuitive, powerful, and scalable to match the needs of any application. Manage one site or several from the same interface and let site managers control their own systems without accessing other areas or tenants. User information can also be imported from external sources, saving time and hassle.

It provides security and flexibility for managers and users alike. Administrators can configure Access Privilege Groups to easily manage large number of users with the same access needs, or to configure more granular permissions for individuals. Advanced scheduling options, including temporary and holiday schedules, make it simple to grant and restrict access as needed. Users and managers can utilize the AC Key mobile app, allowing them to send visitors temporary credentials by text or email, providing flexible and secure access on the fly. AC Nio™ also lets managers track site access with real time activity reports, including user and muster reports, and empower designated users to initiate emergency lockdowns.

AC Nio can either run on a PC or server, including the option to use an AC-HOST, an embedded Linux system with AC Nio pre-installed. There are multiple licensing options available depending on the size of the system. See the Features section below for more details on licensing terms and supported functions.

System Highlights

AC Series Quick Start Guide

AC Nio Specificiation

AC Nio Licensing Guide

AC Nio Admin App Setup Guide

AC Series Access Control Home Page

Features

Scalable to cover small and medium sites
User friendly programming and management interface
AC Nio Admin™ allows admins to make changes from their mobile device
Custom scheduling for all users and doors, including Holiday Schedules
Issue temporary guest passes with AC Key™
LDAP integration (Active Directory)
Generate granular reports on user and door activity
VMS Integration
Create custom actions with the scripting engine
Create up to five system partitions
Manage doors without a card reader
IP camera integration
Manage elevators

We offer AC Nio Essential and Small Business licenses for on-prem deployments. Both are available in a 1 or 5 year renewal schedule. Licenses can be purchased and activated through AiphoneCloud.

(1 or 5 year license available)	AC-NIO-ESS	AC-NIO-SBS
Doors	40	80
Cameras	40	80
Partitions	1	5
LDAP	NO	YES
Unmanaged Doors	NO	YES
Elevator Control	NO	YES
AC-HOST	YES	NO

If you need a larger system capacity with more doors and cameras, contact your local rep, we’re here to assist.

Specs

Operating System:	Operating System: Windows® 7 Professional, Windows® 7 Enterprise, Windows® 7 Ultimate or later
CPU:	CPU: 32 bit (x86) processor or 64 bit (x64) processor, 2 GHz or faster
Memory:	Memory: 4 GB or higher
Required Storage:	Required Storage: 1 GB (additional space required for database)
Runtime:	Runtime: .NET Framework 4.5 or later
SQL Server:	SQL Server: Microsoft SQL Server 2008 or SQL Server 2008 Express or higher
