- SIP Compliant
- ONVIF® Profile S Compliant
- PoE with PoE pass-through
- Camera vertical adjustment +15º, 0º, or -8º (manual)
- White LED for low-light illumination
- Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
- Weather and vandal-resistant
- Aluminum Diecast faceplate
- 2 contact outputs
- 6 trigger inputs
- UL Certified

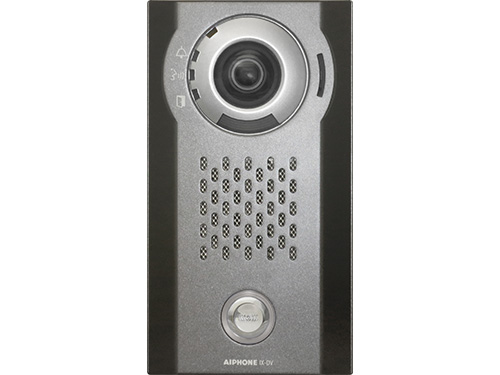

IX-DV
Surface Mounted IP Video Door Station
The IX-DV is a surface mount, vandal resistant, and weather resistant IP Video Intercom, featuring an aluminum die cast cover. The IX-DV is SIP compliant, ONVIF ® Profile S compliant, and is capable of streaming video feeds through RTSP. The IX-DV is compatible with all IX | IXG series devices.
| Power Source PoE (IEEE 802.3af class 0) or 24V DC (PS2420UL) (PoE pass-through requires 802.3at Type 2 PoE+) |
| Power Draw 5.28 Watts |
| Camera ⅓" CMOS 1.23 megapixel |
| Min. illumination 5 lux |
| Audio Codec G.711 (μ-law, A law), G.722 |
| Video Codec H.264/AVC, motion JPEG |
| Volume 73dB-96dB |
| Port Security IEEE 802.1X |
| Operating Temp -40° - 140°F (-40° - 60°C) |
| Protection IP54, IK08 |
| Dimensions 8-1⁄16" H x 4-½" W x 2-1⁄16" D |
| Mounting Surface mounted with included bracket. |
