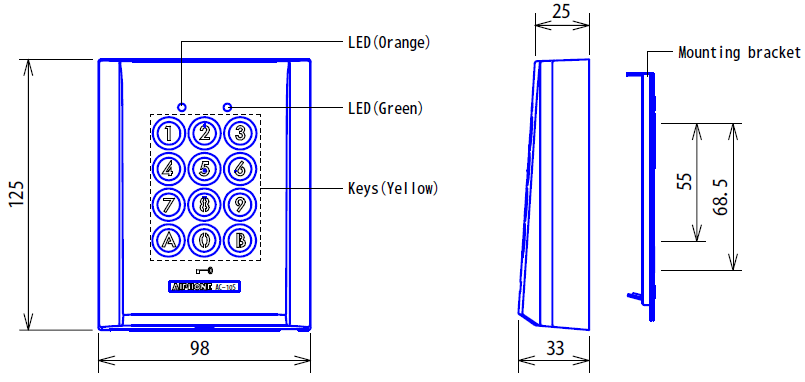

Line Drawing



Specifications

Power Source

12-24V AC or DC

Current Consumption

AC: 100mA (max.) DC: 70mA (max.)

Number of Relays

2

Relay Contact Capacity

24V DC, 3A (resistive load) 1A (inductive load) 24V AC, 3A (resistive load) 1A (inductive load)

Mounting

Surface wall mount

Protection Rating

IP54

Operating Temperature

-4°~140° F (-20° ~ 40° C)

Dimensions

H 4-15/16” x W 3-7/8” x D 1-5/16”

Weight

Approx. 1.32lbs (600g) [post_title] => AC-10S Technical Specifications (Discontinued) [post_excerpt] => [post_status] => publish [comment_status] => open [ping_status] => open [post_password] => [post_name] => ac-10s-technical-specifications [to_ping] => [pinged] => [post_modified] => 2025-04-10 11:04:30 [post_modified_gmt] => 2025-04-10 18:04:30 [post_content_filtered] => [post_parent] => 0 [guid] => https://aiphone.local/kb/ac-10s-technical-specifications/ [menu_order] => 0 [post_type] => kb [post_mime_type] => [comment_count] => 0 [filter] => raw ) [1] => WP_Post Object ( [ID] => 37510 [post_author] => 18 [post_date] => 2021-12-07 18:42:38 [post_date_gmt] => 2021-12-08 02:42:38 [post_content] =>

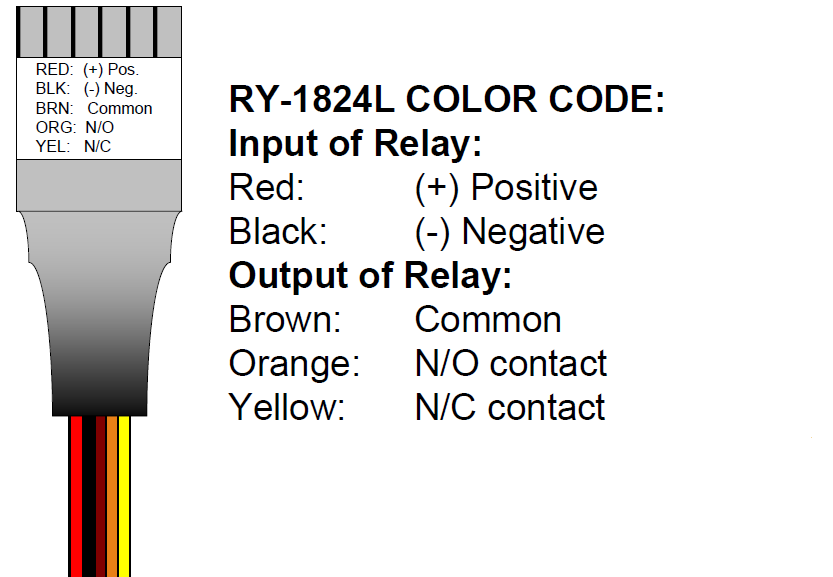

Line Drawing



Specifications

Features

  • Normally open (N/O) contact with a high current rating for door strikes
  • Normally closed (N/C) contact with high current for magnetic locks
  • Use with any 18-24V system that requires door release

Power Source

Supplied by Master Station or CEU

Contact Rating

250V AC, 8A 30V DC, 5A

Compatible Stations

Form C Door Release Relay for AX Series, JF Series, JK Series, JO Series, JP Series, or KB Series

Mounting

Surface mount directly to the wall

Dimensions

1-7/16" H x 13/16" W x 7/16" D (with wires extending approx. 7-1/2") [post_title] => RY-1824L Technical Specifications [post_excerpt] => [post_status] => publish [comment_status] => open [ping_status] => open [post_password] => [post_name] => ry-1824l-technical-specifications [to_ping] => [pinged] => [post_modified] => 2025-04-10 11:09:53 [post_modified_gmt] => 2025-04-10 18:09:53 [post_content_filtered] => [post_parent] => 0 [guid] => https://aiphone.local/kb/ry-1824l-technical-specifications/ [menu_order] => 0 [post_type] => kb [post_mime_type] => [comment_count] => 0 [filter] => raw ) [2] => WP_Post Object ( [ID] => 37508 [post_author] => 18 [post_date] => 2021-12-07 18:24:46 [post_date_gmt] => 2021-12-08 02:24:46 [post_content] =>

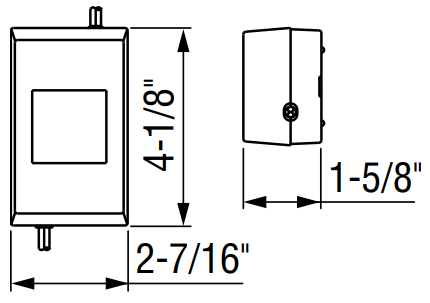

Line Drawing



Specifications

Features

  • Allows an external device to be triggered when the intercom is called
  • External device will be activated when the door station calls in

Power Source

12-24V DC, 12-16V AC - supplied by Master Station

Contact Rating

125V AC, 1.0A 30V DC, 1.0A

Compatible Stations

External Signaling Relay for AX Series, DB Series, JF Series, JK Series, JO Series, JP Series, or KB Series

Mounting

Surface mount directly to the wall

Dimensions

4-1/8"H x 2-7/16"W x 1-5/8"D [post_title] => RY-ES Technical Specifications [post_excerpt] => [post_status] => publish [comment_status] => open [ping_status] => open [post_password] => [post_name] => ry-es-technical-specifications [to_ping] => [pinged] => [post_modified] => 2025-04-10 11:09:01 [post_modified_gmt] => 2025-04-10 18:09:01 [post_content_filtered] => [post_parent] => 0 [guid] => https://aiphone.local/kb/ry-es-technical-specifications/ [menu_order] => 0 [post_type] => kb [post_mime_type] => [comment_count] => 0 [filter] => raw ) [3] => WP_Post Object ( [ID] => 37506 [post_author] => 18 [post_date] => 2021-12-07 18:06:06 [post_date_gmt] => 2021-12-08 02:06:06 [post_content] =>

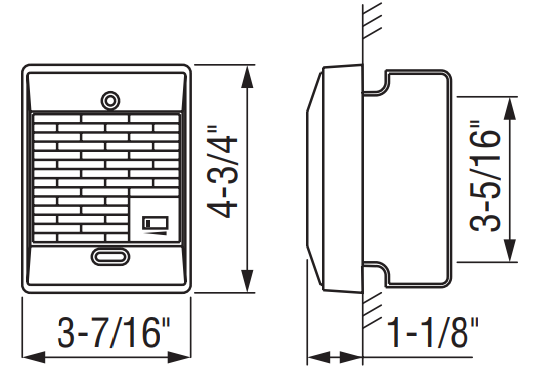

Line Drawing



Specifications

Features

  • Announces chime tone only
  • Adjustable volume (3 positions)
  • Indoor mounting

Compatible Stations

Call Extension Speaker for DB Series, JF Series, JK Series, JO Series, JP Series, KB Series, or NIM Series

Mounting

Surface mount directly to the wall or 1-gang box

Dimensions

4-3/4"H x 3-1/2"W x 1-1/8"D

Weight

0.33lbs (150g) [post_title] => IER-2 Technical Specifications [post_excerpt] => [post_status] => publish [comment_status] => open [ping_status] => open [post_password] => [post_name] => ier-2-technical-specifications [to_ping] => [pinged] => [post_modified] => 2025-04-10 11:54:03 [post_modified_gmt] => 2025-04-10 18:54:03 [post_content_filtered] => [post_parent] => 0 [guid] => https://aiphone.local/kb/ier-2-technical-specifications/ [menu_order] => 0 [post_type] => kb [post_mime_type] => [comment_count] => 0 [filter] => raw ) ) [post_count] => 4 [current_post] => -1 [before_loop] => 1 [in_the_loop] => [post] => WP_Post Object ( [ID] => 37492 [post_author] => 18 [post_date] => 2021-12-06 16:52:16 [post_date_gmt] => 2021-12-07 00:52:16 [post_content] =>

Line Drawing



Specifications

Power Source

12-24V AC or DC

Current Consumption

AC: 100mA (max.) DC: 70mA (max.)

Number of Relays

2

Relay Contact Capacity

24V DC, 3A (resistive load) 1A (inductive load) 24V AC, 3A (resistive load) 1A (inductive load)

Mounting

Surface wall mount

Protection Rating

IP54

Operating Temperature

-4°~140° F (-20° ~ 40° C)

Dimensions

H 4-15/16” x W 3-7/8” x D 1-5/16”

Weight

Approx. 1.32lbs (600g) [post_title] => AC-10S Technical Specifications (Discontinued) [post_excerpt] => [post_status] => publish [comment_status] => open [ping_status] => open [post_password] => [post_name] => ac-10s-technical-specifications [to_ping] => [pinged] => [post_modified] => 2025-04-10 11:04:30 [post_modified_gmt] => 2025-04-10 18:04:30 [post_content_filtered] => [post_parent] => 0 [guid] => https://aiphone.local/kb/ac-10s-technical-specifications/ [menu_order] => 0 [post_type] => kb [post_mime_type] => [comment_count] => 0 [filter] => raw ) [comment_count] => 0 [current_comment] => -1 [found_posts] => 16 [max_num_pages] => 4 [max_num_comment_pages] => 0 [is_single] => [is_preview] => [is_page] => [is_archive] => 1 [is_date] => [is_year] => [is_month] => [is_day] => [is_time] => [is_author] => [is_category] => [is_tag] => [is_tax] => 1 [is_search] => [is_feed] => [is_comment_feed] => [is_trackback] => [is_home] => [is_privacy_policy] => [is_404] => [is_embed] => [is_paged] => [is_admin] => [is_attachment] => [is_singular] => [is_robots] => [is_favicon] => [is_posts_page] => [is_post_type_archive] => 1 [query_vars_hash:WP_Query:private] => e0eec8ad96c6362b45acd3ed93483994 [query_vars_changed:WP_Query:private] => 1 [thumbnails_cached] => [allow_query_attachment_by_filename:protected] => [stopwords:WP_Query:private] => [compat_fields:WP_Query:private] => Array ( [0] => query_vars_hash [1] => query_vars_changed ) [compat_methods:WP_Query:private] => Array ( [0] => init_query_flags [1] => parse_tax_query ) )

JO-DA Technical Specifications

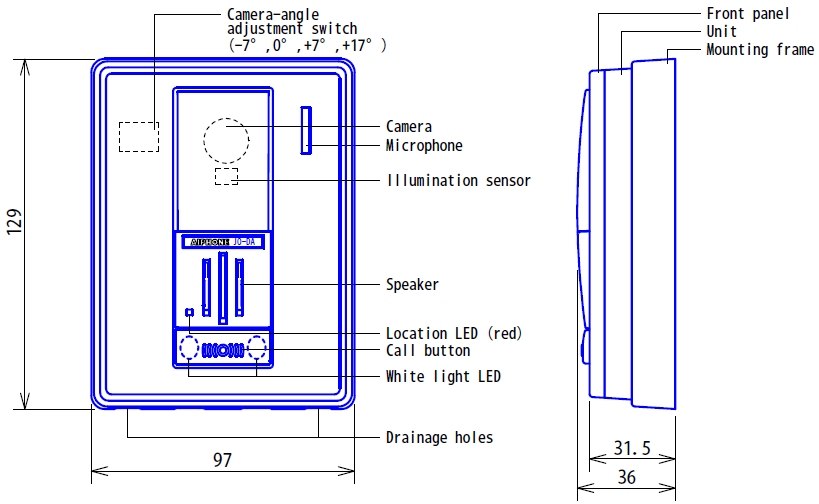

Line Drawing

Specifications

Power Source

Supplied by JO Series Master Station or Expansion Station

Communication

Hands-free

Camera

CMOS

Camera Angle Adjustment

-7°, 0°, +7°, +17° (4-positions)

Minimum Illumination

5 lux

Wiring

2-conductor, PE insulation, Aiphone wire #871802

Wiring Distance

330′

Mounting

Surface wall mount

Electrical Box

Single-gang box

Protection Rating

IP54

Operating Temperature

-4°~140° F (-20° ~ 60° C)

Dimensions

5-¹⁄16″ x 3-¹³⁄16″ x 1-³⁄8″

Weight

Approx. 0.44lbs (200g)
