AX-16SW Technical Specifications

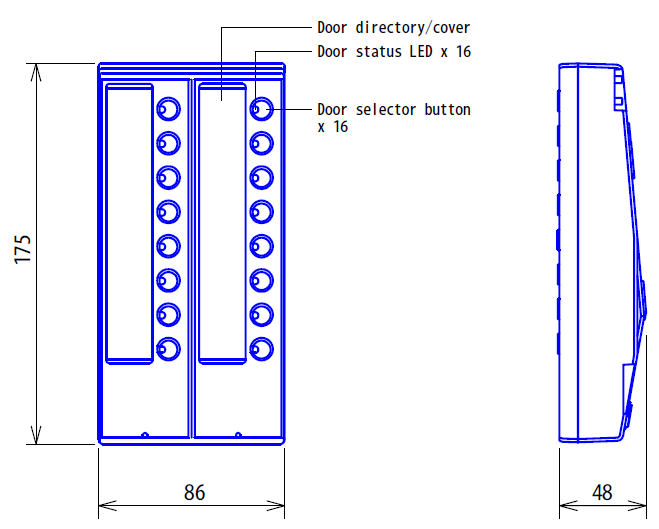

Line Drawing

Specifications

Calling Capacity

16 Sub Stations per Unit

Wiring

By two junction connectors (supplied) plugged to each Master AX-8M or AX-8MV, and to next add-on selector AX-16SW.

Mounting

Desk or Surface wall mount

Operating Temperature

32°~104° F (0° ~ 40° C)

Dimensions

6-7⁄8″ x 3-3⁄8″ x 1-7⁄8″

Weight

Approx. 0.44 lbs (200g)
