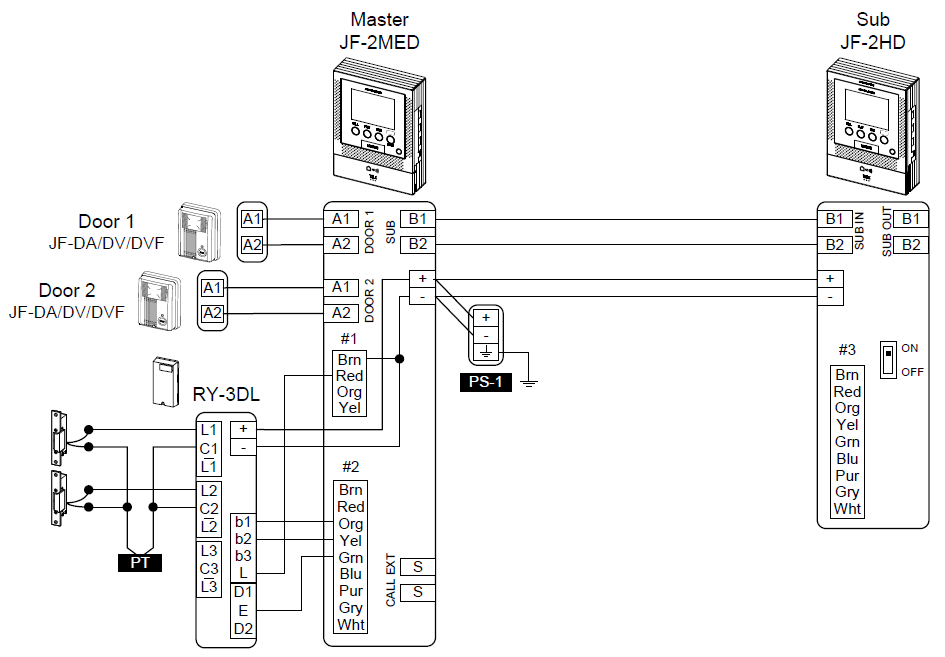

Wiring Diagram
PS-1 represents the PS-1820UL power supply. PT represents the power supply required by release mechanism, contact manufacturer for more information
Wiring Distances
JF Door Station to JF-2MED: 330′
JF-2MED to JF-2HD/SD: 330′ (farthest sub master station)
Notes
- Wire specification: 18AWG, 2 Conductor, mid-capacitance, non-shielded, polyethylene insulated conductors, PVC jacketed.
- See attached Product Installation Manual for complete system information and specifications.
