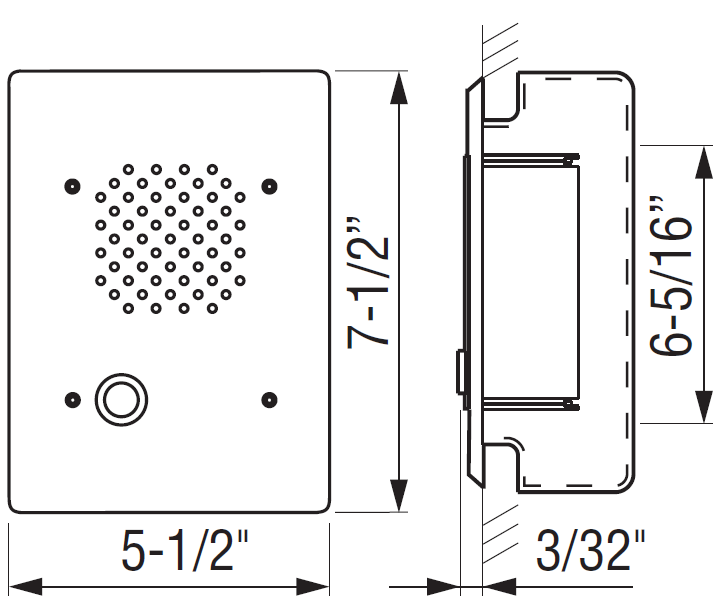

Line Drawing
Specifications
Power Source
Supplied from Master Station
Communication
Open voice hands-free communication
Speaker
20Ω
Wiring
3-cond., overall shield – use Aiphone #822203(22AWG) or #821803(18AWG)
Wiring Distance
650′ (22AWG) or 1600′ (18AWG)
Mounting
Flush mount or surface mount with SBX-NVP
Electrical Box
3-gang box
Dimensions
7-1⁄2″ H x 5-1⁄2″ W x 3/32″ D (faceplate)
