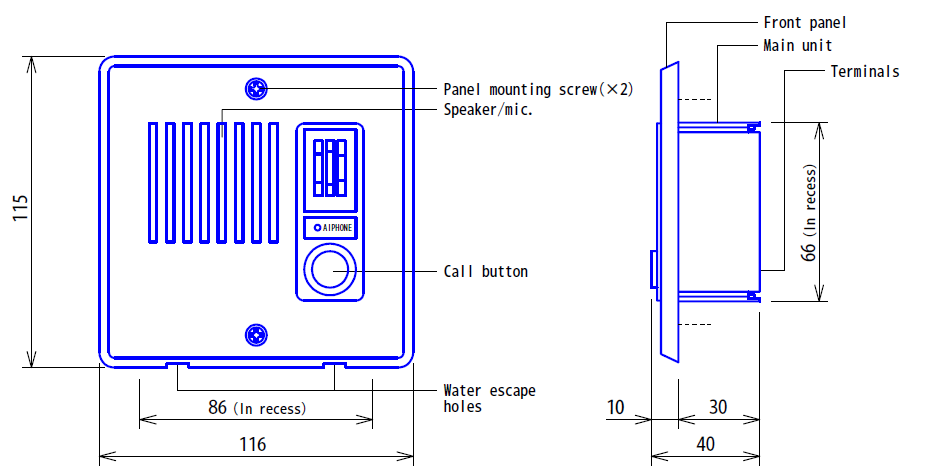

Line Drawing
Specifications
Power Source
Supplied from Master Station
Communication
Open voice hands-free communication
Speaker
20Ω
Wiring
3-cond., overall shield – use Aiphone #822203(22AWG) or #821803(18AWG)
Wiring Distance
650′ (22AWG) or 1600′ (18AWG)
Mounting
Flush Mount
Electrical Box
Two-gang box
Operating Temperature
14°~ 140°F (-10°~ 60°C)
Dimensions
4-1/2” H x 4-9/16” W x 1-9/16” D
Weight
Approx. 0.46 lbs (210g)
