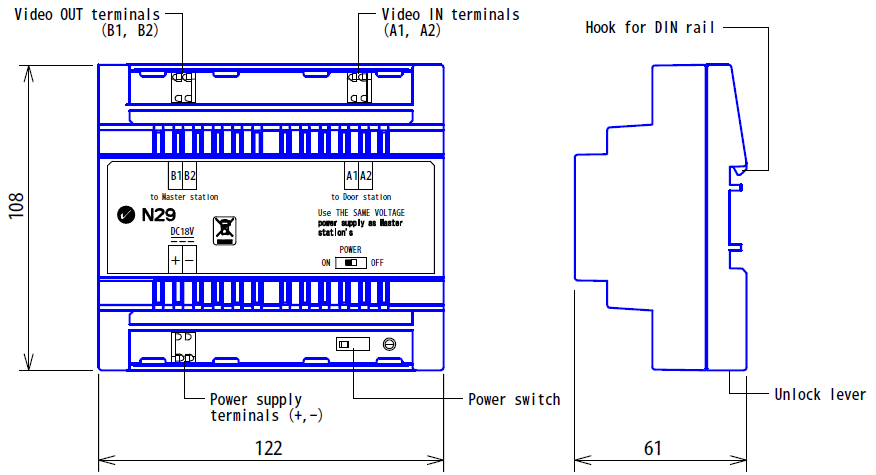

Line Drawing
Specifications
Power Source
18V DC supplied by PS-1820UL
Current Consumption
95mA (max.)
Capacity
1 adaptor unit for video door station located beyond the standard specified wire distance
Mounting
DIN rail (included)
Wire Type
2-conductor, low cap, PE, solid, non-shielded – use Aiphone #871802 wire
Wire Distance
Adaptor to Door Station: 650′
Adaptor to farthest (Sub) Master Station: 330′
Adaptor to Power Supply: 330′
Dimensions
4-13/16” H x 4-1/4” W x 2-3/8” D
Weight
Approx. 0.51lbs (230g)
