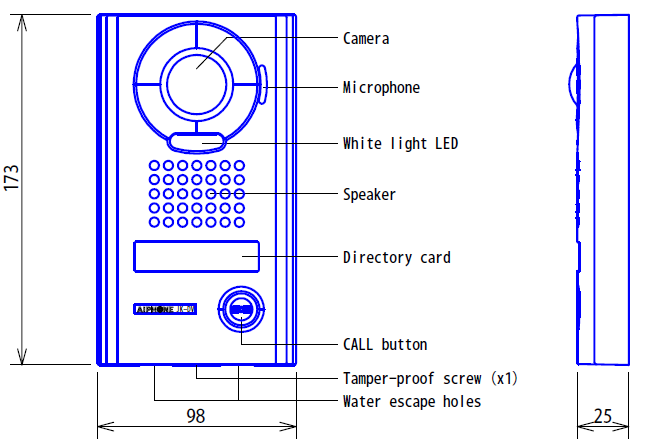

Line Drawing
Specifications
Power Source
18V DC supplied by JK Series Master Station
Communication
Hands-free
Camera
1/4″ CMOS
Camera Angle
Wide: 170°(approx.) (Horizontal)
Minimum Illumination
5 lux
Wiring
2-conductor, PE insulation, Aiphone wire #871802
Wiring Distance
165′ (22 AWG) 330′ (18 AWG)
Mounting
Surface wall mount
Electrical Box
Single-gang box
Operating Temperature
14°~140° F (-10° ~ 60° C)
Dimensions
6-13/16″ H x 3-7/8″ W x 1″ D
Weight
Approx. 1.43lbs (650g)
