JF-DVF Technical Specifications

You are here:
Estimated reading time: < 1 min

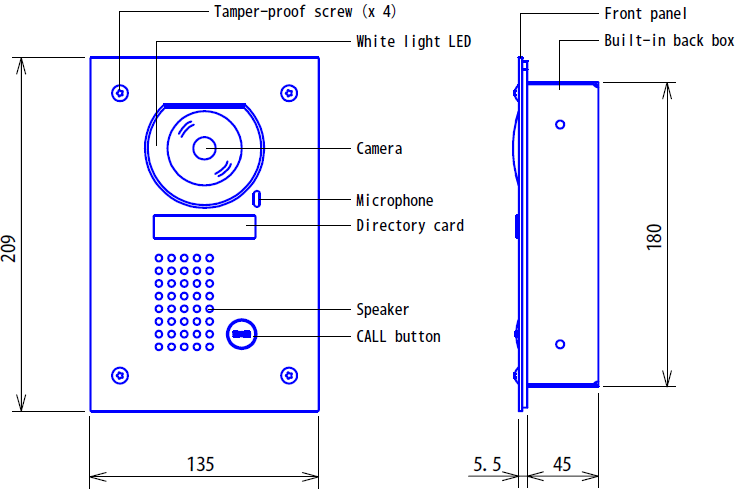

Line Drawing

Specifications

Power Source

18V DC supplied by JF Series Master Station

Communication

Hands-free

Camera

1/4″ CCD

Camera Angle

2′ 1″ vertical x 3′ 1″ horizontal at 20″

Minimum Illumination

5 lux

Wiring

2-conductor, PE insulation, Aiphone wire #871802

Wiring Distance

Door Station to Master Station: 165′ (22 AWG) 330′ (18 AWG)

Mounting

Flush mount with included back box or surface mount with SBX-DVF

Operating Temperature

14°~140° F (-10° ~ 60° C)

Dimensions

8-¼” x 5-5/16″ x 7/32″

Weight

Approx. 1.2lbs (550g)
