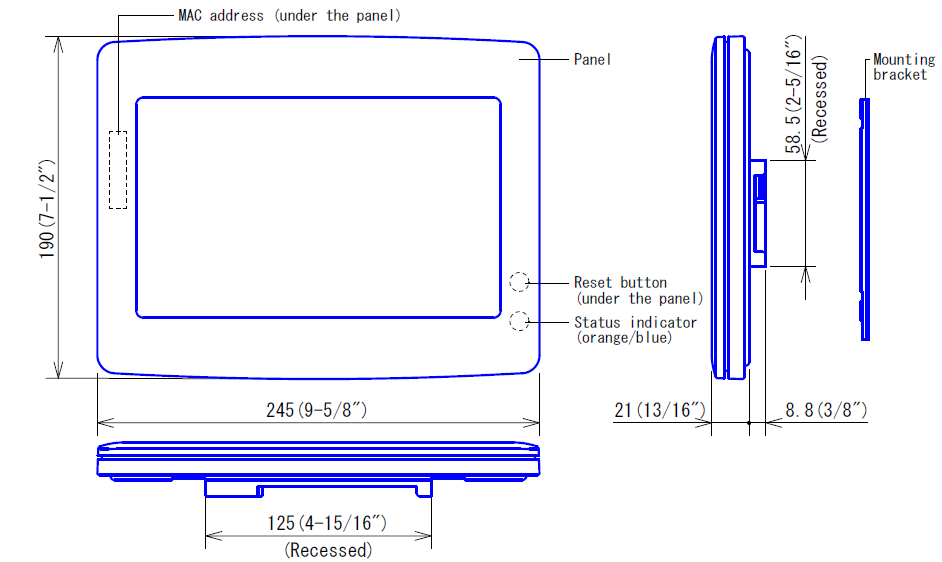

Line Drawing

Specifications

Power Source

PoE (IEEE 802.3af class 0)

Power Draw

6.48W Maximum

Relay Output

Relays 1-4: Form C 24V AC/DC 500mA Relays 5-10: Form A 24V AC/DC 500mA

Protocols

IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS

Port Security

IEEE 802.1X

Operating Temperature

14° ~ 122°F (-10° ~ 50°C)

Dimensions

7-½" H x 9-⅝" W x 13⁄16" D

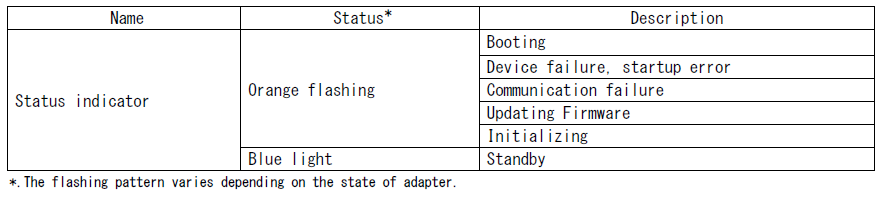

Status Lights Indicators

[post_title] => IXW-MA Data Sheet [post_excerpt] => [post_status] => publish [comment_status] => open [ping_status] => open [post_password] => [post_name] => ixw-ma-spec-sheet [to_ping] => [pinged] => [post_modified] => 2025-10-14 15:03:35 [post_modified_gmt] => 2025-10-14 22:03:35 [post_content_filtered] => [post_parent] => 0 [guid] => https://aiphone.local/kb/ixw-ma-spec-sheet/ [menu_order] => 0 [post_type] => kb [post_mime_type] => [comment_count] => 0 [filter] => raw ) [2] => WP_Post Object ( [ID] => 37800 [post_author] => 18 [post_date] => 2024-05-09 21:44:13 [post_date_gmt] => 2024-05-10 04:44:13 [post_content] =>

Station	Surface Box
IX-DVM	SBX-CON1
IX-EA	SBX-CON1
IX-DV	SBX-CON1 (Straight), SBX-IXDV30 (Angled)
IX-DVF	SBX-IDVF
IX-DVF-4A	SBX-IXGDM7
IX-DVF-6	SBX-IXGDM7
IX-DVF-L	SBX-IDVFRA
IX-DVF-HW	Surface Box Included
IX-DVF-PR	SBX-IDVFRA
IX-DVF-10KP	SBX-IXGDM7
IX-DVF-RA	SBX-IDVFRA
IX-DVF-2RA	SBX-IDVFRA
IX-SSA-RA	SBX-IDVFRA
IX-SSA-2RA	SBX-IDVFRA
IX-SS-2G	SBX-2G/A
IX-SSA	SBX-IDVF
IX-NVP	SBX-NVP/A
IX-NVP2	SBX-NVP/A
IX-NVP-2DC	SBX-NVP/A
IX-NVP-2DCL	SBX-NVP/A
IXG-DM7-HID(A)	SBX-IXGDM7
