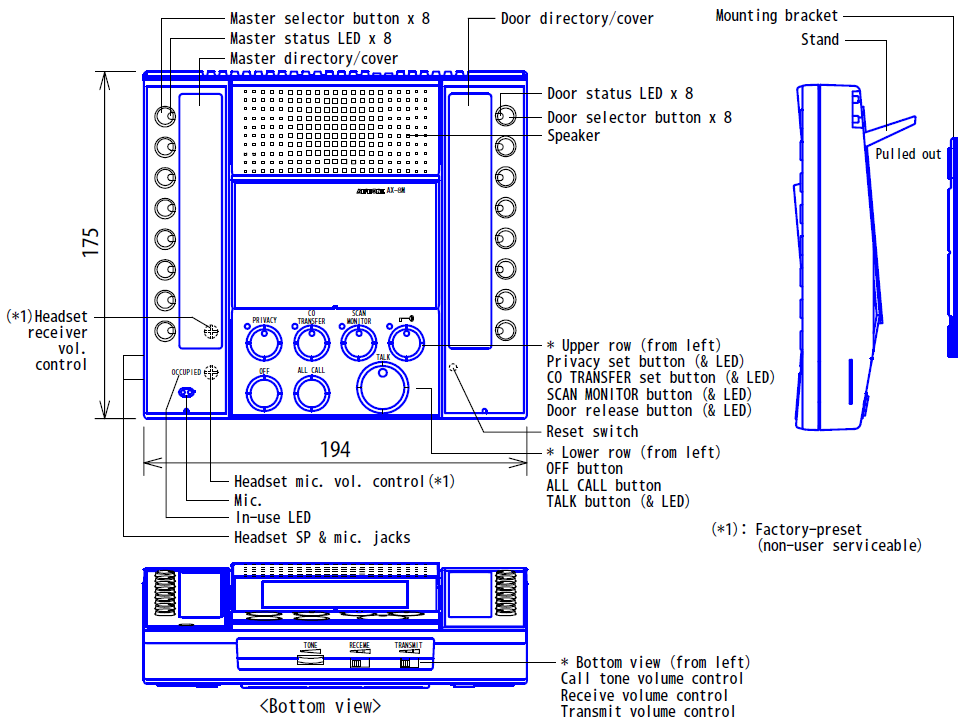

Line Drawing
Specifications
Power Source
24V DC Supplied by AX CEU
Communication
Hands-free
Headset Jack
3.5mm microphone and speaker jacks
Calling Capacity
Up to 7 additional master stations
Up to 120 door / sub stations
Wiring
CAT5e/6 homerun to CEU
Wiring Distance
330′
Mounting
Desk or Surface wall mount
Electrical Box
2-gang box or ring
Operating Temperature
32°~104° F (0° ~ 40° C)
Dimensions
6-7⁄8″ x 7-5⁄8″ x 1-7⁄8″
Weight
Approx. 1.0 lbs (450g)
