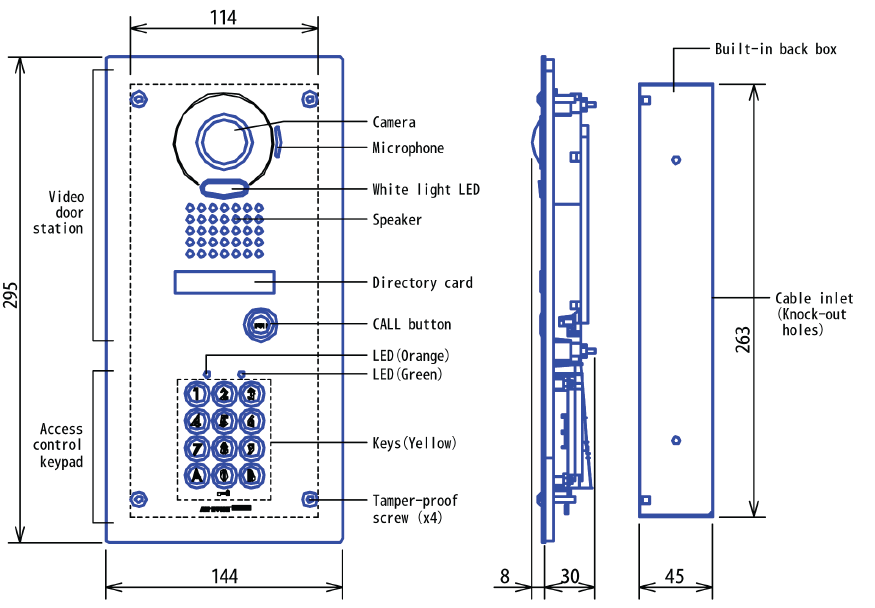

Line Drawing



Specifications

Power Source

18V DC supplied by JK Series Master Station Keypad requires separate 12~24V AC/DC power supply

Current Consumption

AC: 100mA (max.) DC: 70mA (max.)

Communication

Hands-free

Camera

1/4" CMOS

Camera Angle

Wide: 170°(approx.) (Horizontal)

Minimum Illumination

5 lux

Relay Contact

24V DC, N/O or N/C 3A (resistive load) 1A (inductive load)

Wiring

2-conductor, PE insulation, Aiphone wire #871802

Wiring Distance

165' (22 AWG) 330' (18 AWG)

Mounting

Flush mount or surface mount with SBX-DVF-P

Operating Temperature

14°~140° F (-10° ~ 60° C)

Dimensions

5-11/16" H x 11-5/8" W x 1-3/4" D

Weight

Approx. 1.8lbs (890g) [post_title] => JK-DVF-AC Technical Specifications [post_excerpt] => [post_status] => publish [comment_status] => open [ping_status] => open [post_password] => [post_name] => jk-dvf-ac-technical-specifications [to_ping] => [pinged] => [post_modified] => 2025-04-10 12:12:42 [post_modified_gmt] => 2025-04-10 19:12:42 [post_content_filtered] => [post_parent] => 0 [guid] => https://aiphone.local/kb/jk-dvf-ac-technical-specifications/ [menu_order] => 0 [post_type] => kb [post_mime_type] => [comment_count] => 0 [filter] => raw ) [1] => WP_Post Object ( [ID] => 37665 [post_author] => 18 [post_date] => 2023-04-19 17:32:25 [post_date_gmt] => 2023-04-20 00:32:25 [post_content] => [post_title] => External Signaling JO, JK, JF, JP, KB, IE [post_excerpt] => [post_status] => publish [comment_status] => open [ping_status] => open [post_password] => [post_name] => external-signaling-jo-jk-jf-jp-kb-ie [to_ping] => [pinged] => [post_modified] => 2025-03-13 10:25:30 [post_modified_gmt] => 2025-03-13 17:25:30 [post_content_filtered] => [post_parent] => 0 [guid] => https://aiphone.local/kb/external-signaling-jo-jk-jf-jp-kb-ie/ [menu_order] => 0 [post_type] => kb [post_mime_type] => [comment_count] => 0 [filter] => raw ) [2] => WP_Post Object ( [ID] => 37510 [post_author] => 18 [post_date] => 2021-12-07 18:42:38 [post_date_gmt] => 2021-12-08 02:42:38 [post_content] =>

Line Drawing



Specifications

Features

• Normally open (N/O) contact with a high current rating for door strikes
• Normally closed (N/C) contact with high current for magnetic locks
• Use with any 18-24V system that requires door release

Power Source

Supplied by Master Station or CEU

Contact Rating

250V AC, 8A 30V DC, 5A

Compatible Stations

Form C Door Release Relay for AX Series, JF Series, JK Series, JO Series, JP Series, or KB Series

Mounting

Surface mount directly to the wall

Dimensions

1-7/16" H x 13/16" W x 7/16" D (with wires extending approx. 7-1/2") [post_title] => RY-1824L Technical Specifications [post_excerpt] => [post_status] => publish [comment_status] => open [ping_status] => open [post_password] => [post_name] => ry-1824l-technical-specifications [to_ping] => [pinged] => [post_modified] => 2025-04-10 11:09:53 [post_modified_gmt] => 2025-04-10 18:09:53 [post_content_filtered] => [post_parent] => 0 [guid] => https://aiphone.local/kb/ry-1824l-technical-specifications/ [menu_order] => 0 [post_type] => kb [post_mime_type] => [comment_count] => 0 [filter] => raw ) [3] => WP_Post Object ( [ID] => 37508 [post_author] => 18 [post_date] => 2021-12-07 18:24:46 [post_date_gmt] => 2021-12-08 02:24:46 [post_content] =>

Line Drawing



Specifications

Features

• Allows an external device to be triggered when the intercom is called
• External device will be activated when the door station calls in

Power Source

12-24V DC, 12-16V AC - supplied by Master Station

Contact Rating

125V AC, 1.0A 30V DC, 1.0A

Compatible Stations

External Signaling Relay for AX Series, DB Series, JF Series, JK Series, JO Series, JP Series, or KB Series

Mounting

Surface mount directly to the wall

Dimensions

4-1/8"H x 2-7/16"W x 1-5/8"D [post_title] => RY-ES Technical Specifications [post_excerpt] => [post_status] => publish [comment_status] => open [ping_status] => open [post_password] => [post_name] => ry-es-technical-specifications [to_ping] => [pinged] => [post_modified] => 2025-04-10 11:09:01 [post_modified_gmt] => 2025-04-10 18:09:01 [post_content_filtered] => [post_parent] => 0 [guid] => https://aiphone.local/kb/ry-es-technical-specifications/ [menu_order] => 0 [post_type] => kb [post_mime_type] => [comment_count] => 0 [filter] => raw ) ) [post_count] => 4 [current_post] => -1 [before_loop] => 1 [in_the_loop] => [post] => WP_Post Object ( [ID] => 37488 [post_author] => 18 [post_date] => 2021-12-03 17:07:31 [post_date_gmt] => 2021-12-04 01:07:31 [post_content] =>

Line Drawing



Specifications

Power Source

18V DC supplied by JK Series Master Station Keypad requires separate 12~24V AC/DC power supply

Current Consumption

AC: 100mA (max.) DC: 70mA (max.)

Communication

Hands-free

Camera

1/4" CMOS

Camera Angle

Wide: 170°(approx.) (Horizontal)

Minimum Illumination

5 lux

Relay Contact

24V DC, N/O or N/C 3A (resistive load) 1A (inductive load)

Wiring

2-conductor, PE insulation, Aiphone wire #871802

Wiring Distance

165' (22 AWG) 330' (18 AWG)

Mounting

Flush mount or surface mount with SBX-DVF-P

Operating Temperature

14°~140° F (-10° ~ 60° C)

Dimensions

5-11/16" H x 11-5/8" W x 1-3/4" D

Weight

Approx. 1.8lbs (890g) [post_title] => JK-DVF-AC Technical Specifications [post_excerpt] => [post_status] => publish [comment_status] => open [ping_status] => open [post_password] => [post_name] => jk-dvf-ac-technical-specifications [to_ping] => [pinged] => [post_modified] => 2025-04-10 12:12:42 [post_modified_gmt] => 2025-04-10 19:12:42 [post_content_filtered] => [post_parent] => 0 [guid] => https://aiphone.local/kb/jk-dvf-ac-technical-specifications/ [menu_order] => 0 [post_type] => kb [post_mime_type] => [comment_count] => 0 [filter] => raw ) [comment_count] => 0 [current_comment] => -1 [found_posts] => 24 [max_num_pages] => 6 [max_num_comment_pages] => 0 [is_single] => [is_preview] => [is_page] => [is_archive] => 1 [is_date] => [is_year] => [is_month] => [is_day] => [is_time] => [is_author] => [is_category] => [is_tag] => [is_tax] => 1 [is_search] => [is_feed] => [is_comment_feed] => [is_trackback] => [is_home] => [is_privacy_policy] => [is_404] => [is_embed] => [is_paged] => [is_admin] => [is_attachment] => [is_singular] => [is_robots] => [is_favicon] => [is_posts_page] => [is_post_type_archive] => 1 [query_vars_hash:WP_Query:private] => c05bf0b6ba424246619235819d0ab19e [query_vars_changed:WP_Query:private] => 1 [thumbnails_cached] => [allow_query_attachment_by_filename:protected] => [stopwords:WP_Query:private] => [compat_fields:WP_Query:private] => Array ( [0] => query_vars_hash [1] => query_vars_changed ) [compat_methods:WP_Query:private] => Array ( [0] => init_query_flags [1] => parse_tax_query ) )
