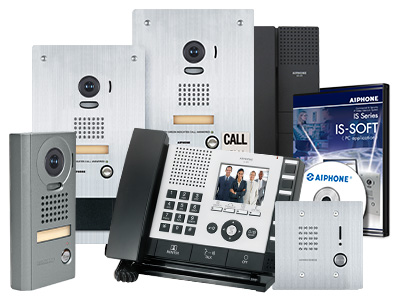

IS Series Flexible Hardwired Intercom with IP Capability (Discontinued 6/30/2021)
Hardwired and Network-based Intercom is an All-in-One Solution
The IS Series offers hardwired and network-based intercom options for entry security, internal communication, rescue assistance, paging, and bell/chime scheduling. It is unique in its ability to provide hardwired, exchange-based intercoms, network-based remote intercoms, and the flexibility to integrate both styles to grant remote access control, assist onsite visitors from an offsite location, broadcast emergency announcements, and communicate using a traditional or software-based master station.
Aiphone is proud to be a rare, two-time winner of the prestigious Deming Prize for quality management and manufacturing processes. Our ISO Certified process and rigorous standards result in some of the most reliable products in the industry. Aiphone products routinely last for years, only being replaced when the application outgrows the system capacity.
- Hardwired stations directly connect to IS Series exchanges
- Network based IP door and master stations
- Hybrid option for combining both hardwired and IP stations
- IP stations are PoE
- Software-based master station available
- Delayed, absent, or scheduled call transferring
- Announcements by day, week, month, or year – easily create different schedules for holiday breaks or after hours
- Group or zone paging announcements can be customized
- Bell/Chime scheduling is perfect for schools, campuses, and commercial applications
- Telephone transfer of incoming calls
IP Stations: PoE (802.3af)
Hardwired Stations: 48V DC – IS-PU-UL
10 BASE-T/100 BASE-TX Ethernet (RJ-45)
IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP,
Hands-free (VOX), push-to-talk (simplex) or handset (full-duplex)
Type: 1/4" color CMOS
View Area: 100° vertical x 170° horizontal
Cat-5e or Cat-6
Door Station to Control Unit: 980'
Door Station to Network Node: 330'
Door Station to Power Supply: 50'
IS-SCU or IS-RCU to IS-CCU: 650' IS-RCU or IS-CCU to IS-IPC: 33'
Video Door Station with Emergency and Standard Call Buttons, Flush Mount Stainless Steel
Video Door Station with Emergency and Standard Call Buttons, French Signage
Stainless Steel Video Door Station with HID® ProxPoint® Plus Reader, Flush Mount
Stainless Steel Video Door Station with HID® multiCLASS SE® Proximity Card Reader, Flush Mount
IP Video Door Station with Built In HID® ProxPoint Plus Reader, Flush Mount Stainless Steel
IP Video Door Station with HID RP10 multiClass Reader, Flush Mount Stainless Steel
IS-RCU-compatible Door Station with Emergency and Standard Call Buttons, Flush Mount Stainless Steel
IS-RCU compatible Door Station with Emergency Call Button, Flush Mount, Stainless Steel
IS Series IP Control Unit / Telephone Transfer Unit for Hybrid, Global System
Add-On Central Control Unit, 8 Master Stations, 8 Video Door Stations
Stainless Steel Surface Mount Box for IS-DVF-HID/RP10, IS-IPSVF-HID
