AX-320C

Components

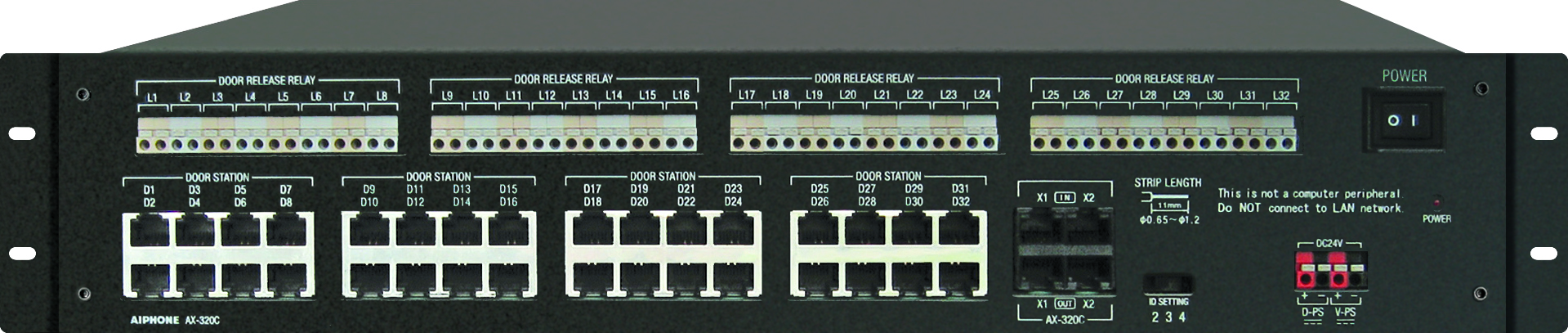

Add-on exchange unit for 32 AX Series door or sub stations.

Features
  • Wiring hub for AX Series system using Cat-5e
  • Two 24V DC power supply input terminals
  • Rack mountable

Specs

Door Release

Programmable dry contact, 24V AC/DC 500mA (use RY-24L for larger contact rating)

Mounting

19" EIA rack (2U) or wall mount

Wire Type

Between Door/Sub Station and Add-On Exchange Unit: Cat-5e
Power Supply to Central Exchange Unit and Add-On Central Exchange Unit: 2-cond., overall shield – use Aiphone #821802

Distance

Door/Sub Station to Central Exchange Unit and Add-On Central Exchange Unit: 980'
Central Exchange Unit to Add-On Central Exchange Unit: 16'
Power Supply to Central Exchange Unit and Add-On Central Exchange Unit: 16'(22AWG), 33'(18AWG)
