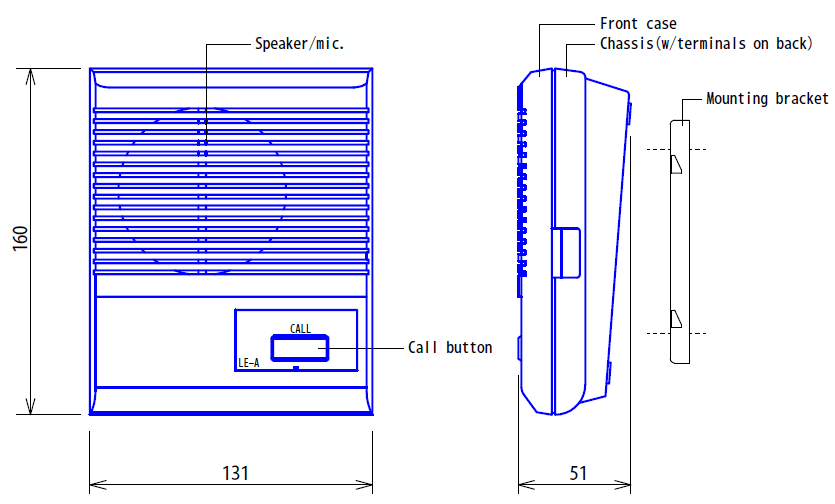

Line Drawing
Specifications
Power Source
Supplied from Master Station
Communication
Open voice hands-free communication
Speaker
20Ω
Wiring
3-cond., overall shield – use Aiphone #822203(22AWG) or #821803(18AWG)
Wiring Distance
650′ (22AWG) or 1600′ (18AWG)
Mounting
Desk or Surface wall mount
Electrical Box
Single-gang box or ring
Operating Temperature
32°~104° F (0° ~ 40° C)
Dimensions
6-1/4” x 5-1/8” x 2”
Weight
Approx. .43 lbs (210g)
