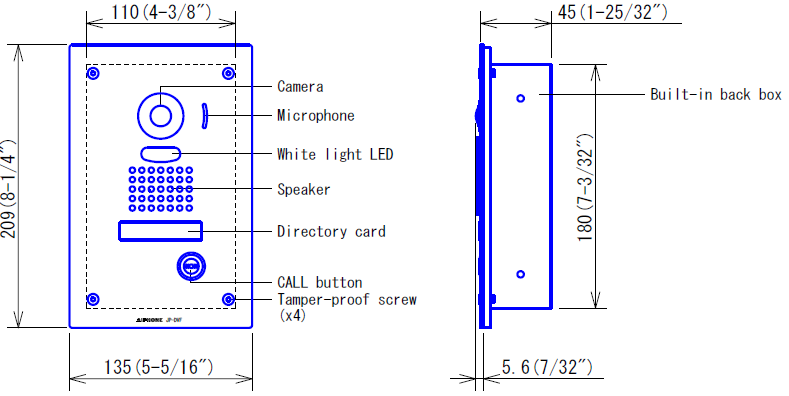

Line Drawing
Specifications
Power Source
Supplied by JP Series Master Station
Communication
Hands-free
Camera
CMOS
Camera Angle
Wide: 170° Horizontal
Minimum Illumination
5 lux
Wiring
2-conductor, PE insulation, Aiphone wire #871802
Wiring Distance
330′
Mounting
Flush mount
Electrical Box
Not used (Mounts on the built-in back box)
Protection Rating
IP54
IK08
Operating Temperature
14°~140° F (-10° ~ 60° C)
Dimensions
8-1⁄4″ x 5-5⁄16″
Weight
Approx. 1.26lbs (570g), back box 1lbs (450g)
