IS Series Flexible Hardwired Intercom with IP Capability

Series
The IS Series is an all-in-one intercom system that has both hardwired and network-based options for entry security, internal communication, rescue assistance, paging, and bell/chime scheduling. The IS Series offers the unique ability to provide homerun, exchange-based intercoms, network-based remote intercoms, and the flexibility to integrate both styles to grant remote access control, assist onsite visitors from an offsite phone, broadcast emergency announcements, and communicate using a traditional master station or a software-based master station.
System Highlights
CSI Spec
CAD Drawing
Application notes
System Capacity
5,120
Door Stations
30,720
Sub Stations
5,120
Master Stations
QuikSpec Plus
Our free service allows you to generate complete equipment lists 24/7!
Save system lists to your profile for future reference or download them to include with proposals.
Features
Network Based
VMS Integration

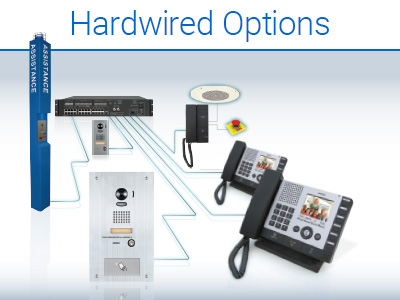

  • Hardwired stations directly connect to IS Series exchanges

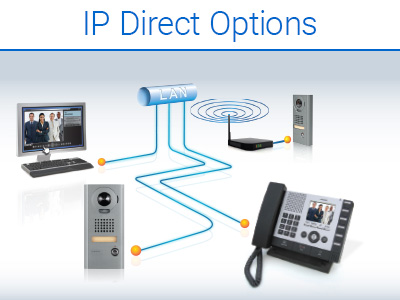

  • Network based IP door and master stations
  • Hybrid option for combining both hardwired and IP stations
  • IP stations are PoE
  • Software-based master station available
  • Delayed, absent, or scheduled call transferring
  • Announcements by day, week, month, or year – easily create different schedules for holiday breaks or after hours
  • Group or zone paging announcements can be customized
  • Bell/Chime scheduling is perfect for schools, campuses, and commercial applications
  • Telephone transfer of incoming calls

Specs

Power Source

IP Stations: PoE (802.3af)
Hardwired Stations: 48V DC – IS-PU-UL

Network Interface

10 BASE-T/100 BASE-TX Ethernet (RJ-45)

Network Protocols

IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP,

Communication

Hands-free (VOX), push-to-talk (simplex) or handset (full-duplex)

Camera

Type: 4" color CMOS
View Area: 100° vertical x 170° horizontal

Wire Type

Cat-5e or Cat-6

Distance

Door Station to Control Unit: 980'
Door Station to Network Node: 330'
Door Station to Power Supply: 50'
IS-SCU or IS-RCU to IS-CCU: 650'


Components
Communication Type
Station Type
Component Feature
