Emergency Solutions

Series
Aiphone towers and wall boxes feature built-in UL Listed electrical boxes to easily satisfy local electrical codes and integrated mounting hardware for power supplies or accessories. The new towers also feature an optional CCTV camera arm module and rear access panels to easily pull wire from top to bottom. Aiphone's unique modular tower design continues to save money. Smaller, segmented shipments reduce overall freight costs. Select one of Aiphone's two specialized intercom systems for emergency communication needs. The IX Series is ideal for facilities looking for a peer-to-peer network solution. The IS Series is best for those who prefer a system that does not require a network.
System Highlights
CSI Spec
Whitepaper
QuikSpec Plus
Our free service allows you to generate complete equipment lists 24/7!
Save system lists to your profile for future reference or download them to include with proposals.
Features

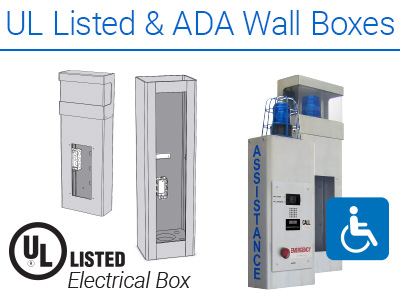

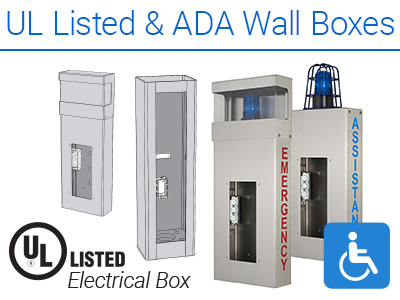

  • Convenient UL Listed electrical box integrated inside wall box and modular towers
  • Modular tower design provides lower freight costs and easier assembly than traditional, non-modular towers
  • Optional CCTV camera arm provides an additional line of sight to better assess unfolding situations

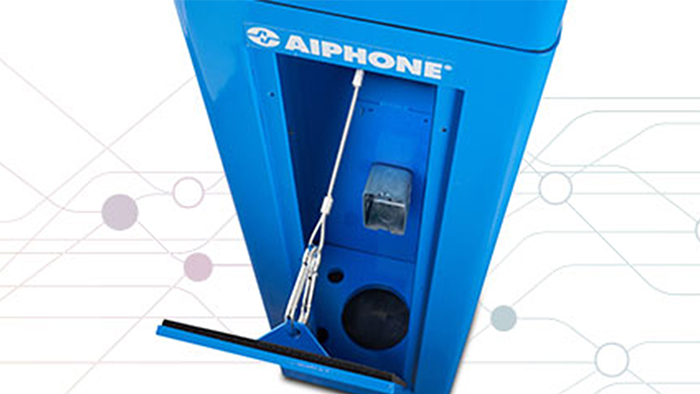

  • Rear access panels on the back of each tower module make it easy to route wires up and down the tower
  • Variety of tower configurations to meet facility needs (size, lettering, color)
  • Beacon/strobe light on top of tower and wall box is always lit and flashes during an emergency call in
  • Integrated mounting hardware in towers and wall boxes to quickly install accessory products safely inside unit
  • Slim, 4″ depth of wall box allows for proper ADA mounting height
  • Compatible with IX Series and IS Series emergency stations

Specs

Material

Tower: 1/4" zinc treated steel with powder coating
Wall Box: 12-gauge stainless steel

Accessory Mounting Hardware

Tower: 4 mounts in lower and upper modules - External threads (male: M3 x .05)
Wall Box: Single mount - Internal threads (female: M3 x .05)

CCTV Camera Arm Thread

Universal pipe thread pattern - 1.50" NPT threading x 1" long

Light/Strobe Power Source

DC 24V, use PS-2420UL


Components
Communication Type
Station Type
Component Feature

Recommendations

IX Series Peer-to-Peer IP Video Intercom
Multi-Platform IP Video Intercom System
IS Series Flexible Hardwired Intercom with IP Capability
Flexible Hardwired Intercom with IP Capability
